Articulated loaders

AL750

Articulated loaders

For tough jobs, you need a tougher machine. The largest Articulated Loader with a standard lift arm we offer, the AL750 is for those who can't compromise—on agricultural and construction sites or anywhere else that demands more lifting power. Swiftly getting the job done with its high-performing hydrostatic transmission and Z-Bar lift arm for extra break-out force, this rugged and robust machine chews through the hardest workdays in less time. The AL750 has your back, enabling you to do your best work from the minute you arrive at work until the minute you head home.

See more See less
11 ft 5 in
74.30 Hp
8 ft 2 in
14 ft 7 in
Learn more about the GEHL warranty

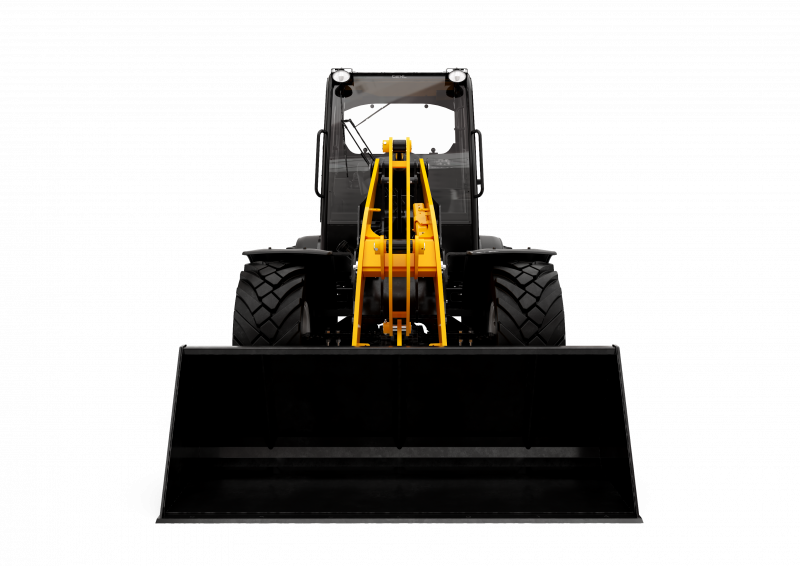

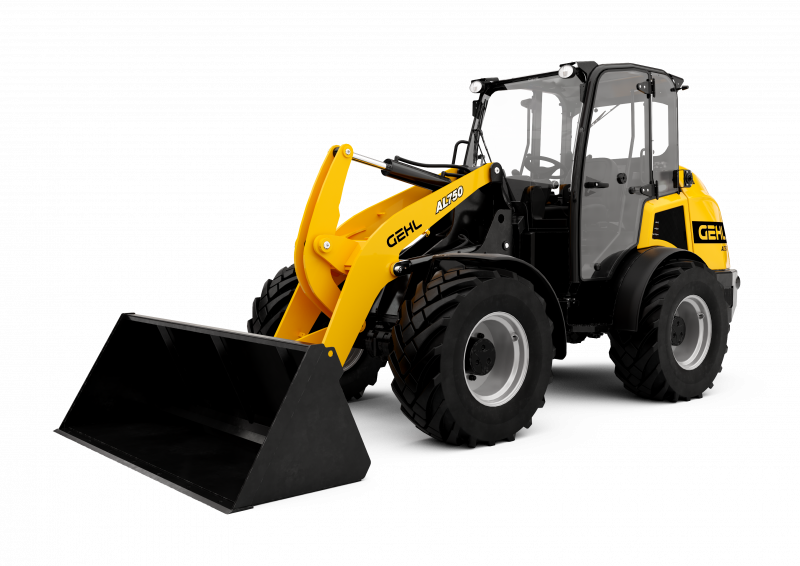

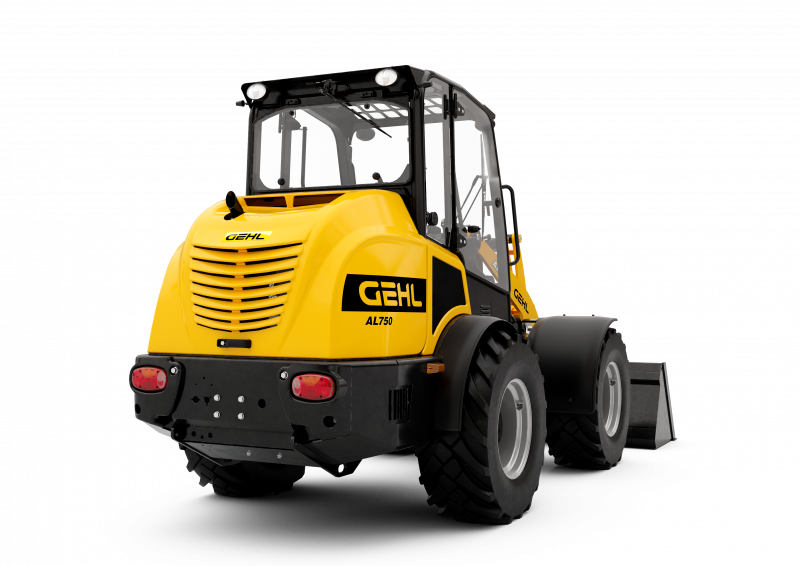

Gallery

Technical features

Capacities

Max. height of bucket pivot point

11 ft 5 in

Max. lifting height (below forks)

10 ft 9 in

Breakout force with bucket

5906 daN

Static tipping load with bucket - Straight with cab

7908 lb

Static tipping load with bucket - Full turn with 4-post canopy

5778 lb

Static tipping load with bucket - Full turn with cab

6127 lb

Static tipping load with pallet forks - Straight with cab

6354 lb

Static tipping load with pallet forks - Straight with 4-post canopy

6043 lb

Static tipping load with pallet forks - Full turn with 4-post canopy

4793 lb

Static tipping load with bucket - Straight with 4-post canopy

7447 lb

Weight and dimensions

Unladen weight (with forks) with 4-post canopy

10540 lb

Unladen weight (with forks)

10919 lb

Wheelbase

6 ft 9 in

Overall width of 4 posts canopy

4 ft 9 in

Overall cab width

4 ft 9 in

Overall height with 4 posts canopy

8 ft 2 in

Overall height with cab

8 ft 2 in

Tilt-up angle

45 °

Tilt-down angle

45 °

External turning radius (over tyres)

11 ft 2 in

Articulation angle

45 °

Overall width less bucket

5 ft 9 in

Overall length - Less Bucket

14 ft 7 in

Ground clearance

1 ft

Engine

Engine brand

Deutz

Engine model

TD3.6 L4

Engine norm

Stage V

Number of cylinders / Capacity of cylinders

4 - 220 in³

I.C. Engine power rating / Power

74.30 Hp / 55 kW

Max. torque / Engine rotation

243 ft/lbs / 2300 rpm

Engine cooling system

2 radiators water + hydraulic oil

Transmission

Transmission type

Hydrostatic

Number of gears (forward / reverse)

2 / 2

Max. travel speed (may vary according to applicable regulations)

19 mph

Travel speed (laden)

19 mph

Differential lock

Front and rear locking of the machine

Parking brake

Manual

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow - Pressure

18 US gpm / 2901 PSI

High-Flow Option (l/min)

30 US gpm

Drive hydraulic system pressure

5511 PSI

Tank capacities

Hydraulic oil

19 US gal

Fuel tank

27 US gal

Noise and vibration

Vibration to whole hand/arm

< 2.50 m/s²

Miscellaneous

Safety cab homologation

ROPS - FOPS level 1 cab
