ALT750

Articulated loaders

Need more reach on the construction site, farm, or lumber yard? The ALT750 is the answer. Pushing your lift abilities to new heights with a heavy-duty telescopic boom, the ATL750 is built with the agile chassis of the AL750—a reliable and strong foundation that's ready to take on tough tasks. A fully adjustable operator station providing true 360° visibility keeps you safe, comfortable, and ready for whatever challenges come your way. Built for any terrain or condition, the ALT750 is your opportunity to do more and extend your capabilities to a new level.

See more See less
7714 lb
16 ft 6 in
74.30 Hp
8 ft 2 in
Learn more about the GEHL warranty

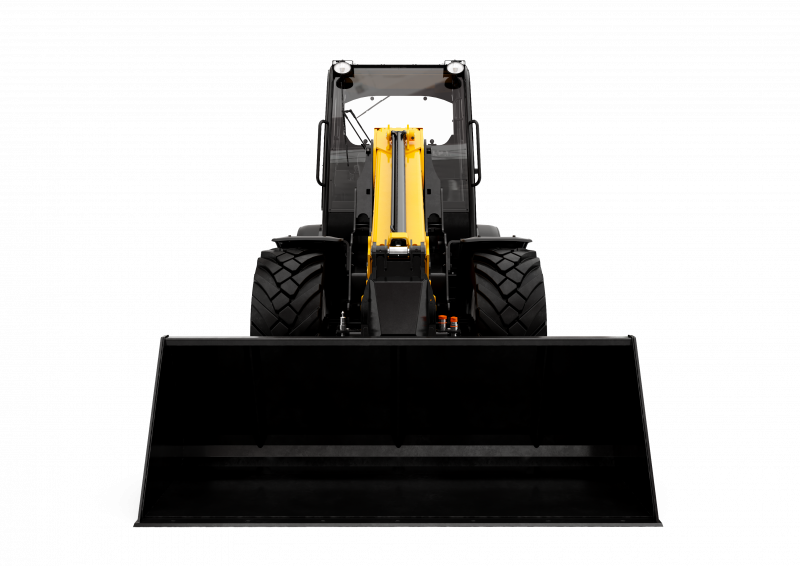

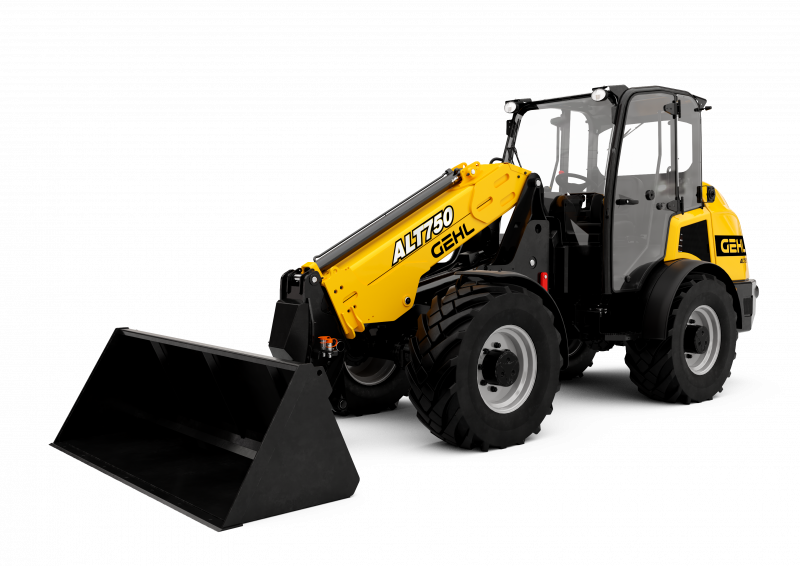

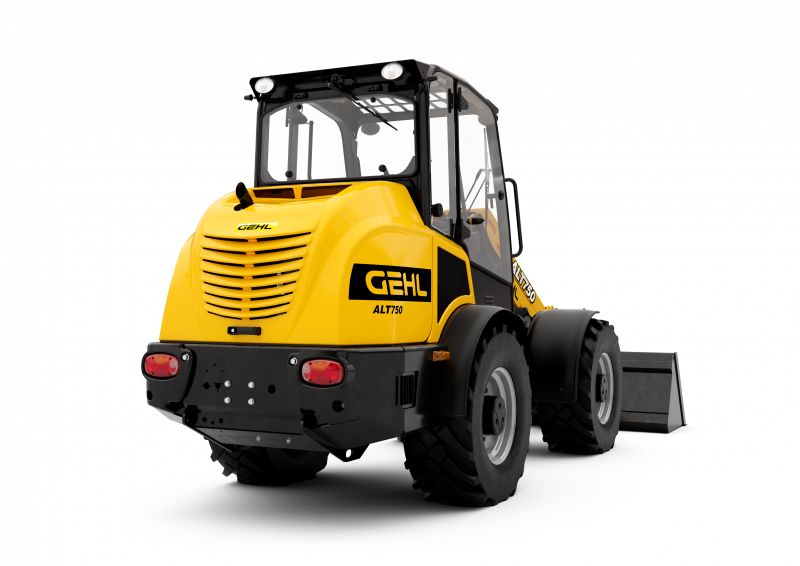

Gallery

Technical features

Capacities

Static tipping load with bucket (straight)

7714 lb

Static tipping load with bucket (full turn)

4012 lb

Max. payload with forks as per EN 474-3 (80%)

3527 lb

Max. height of bucket pivot point

16 ft 6 in

Max. lifting height (below forks)

15 ft 11 in

Max. outreach

10 ft 10 in

Breakout force with bucket

4990 daN

Static tipping load with bucket (retracted)

7714 lb

Static tipping load with bucket (extended)

4012 lb

Bucket hinge pin height (retracted)

154 in

Bucket hinge pin height (extended)

198 in

Weight and dimensions

Unladen weight (with forks) with 4-post canopy

12300 lb

Overall cab width

4 ft 2 in

Overall height with 4 posts canopy

8 ft 2 in

External turning radius (over tyres)

13 ft 3 in

Articulation angle

40 °

Overall width less bucket

6 ft 5 in

Overall length - Less Bucket

18 ft 10 in

Standard tires

405/70-20

Ground clearance

1 ft

Engine

Engine brand

Deutz

Engine model

TD3.6 L4

Engine norm

Stage IIIB

Number of cylinders

4

I.C. Engine power rating / Power

74.30 Hp / 55 kW

Max. torque / Engine rotation

243 ft/lbs / 2300 rpm

Engine cooling system

2 radiators water + hydraulic oil

Transmission

Transmission type

Hydrostatic

Number of gears (forward / reverse)

2 / 2

Max. travel speed (may vary according to applicable regulations)

19 mph

Travel speed (laden)

12 mph

Differential lock

Front and rear locking of the machine

Parking brake

Manual

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow - Pressure

18 US gpm / 2901 PSI

High-Flow Option (l/min)

29 US gpm

Drive hydraulic system pressure

5511 PSI

Tank capacities

Hydraulic oil

19 US gal

Fuel tank

30 US gal

Noise and vibration

Vibration to whole hand/arm

< 2.50 m/s²

Miscellaneous

Safety cab homologation

ROPS - FOPS level 1 cab
