Compact Loaders

RT165

Compact Loaders

If you're looking for an agile and nimble track loader to tackle tough tasks on your site, the RT165 is your solution. Boasting a 52 kW engine, this compact unit offers an awesome power to weight ratio, increasing operator productivity in challenging applications. For those long days in the seat, the RT165 offers a plethora of options (HVAC, air-ride suspension seat, bluetooth radio) to enhance operator comfort. If you want to get more done in less time, do yourself a favor and look into an RT165. Thank us later.

See more See less
157.795 in
126.181 in
67.992 in
51.7 kW
Learn more about the GEHL warranty

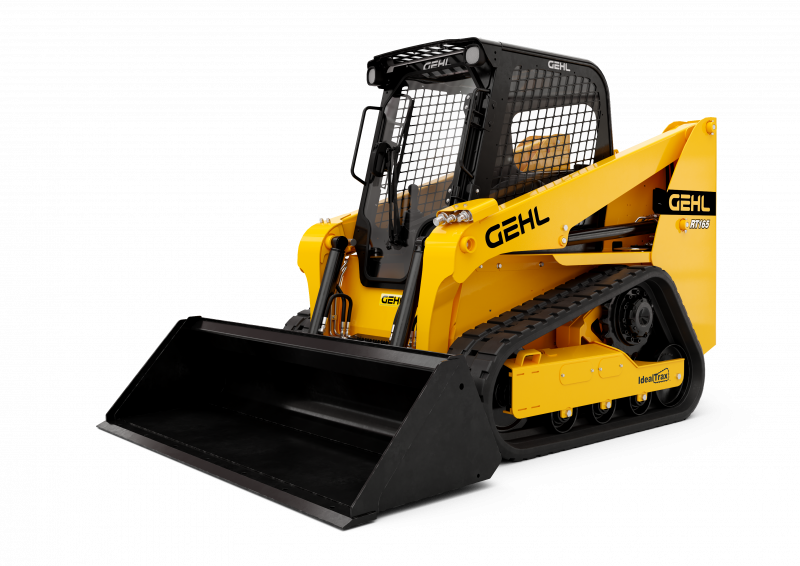

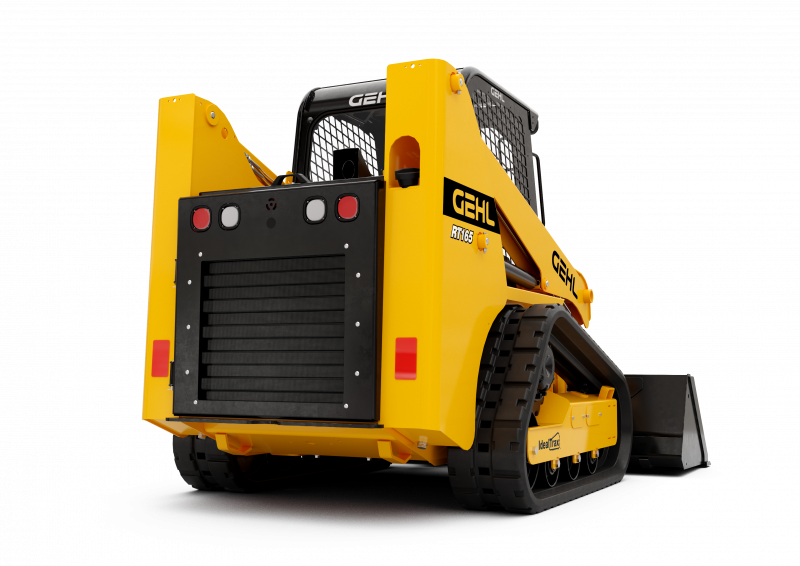

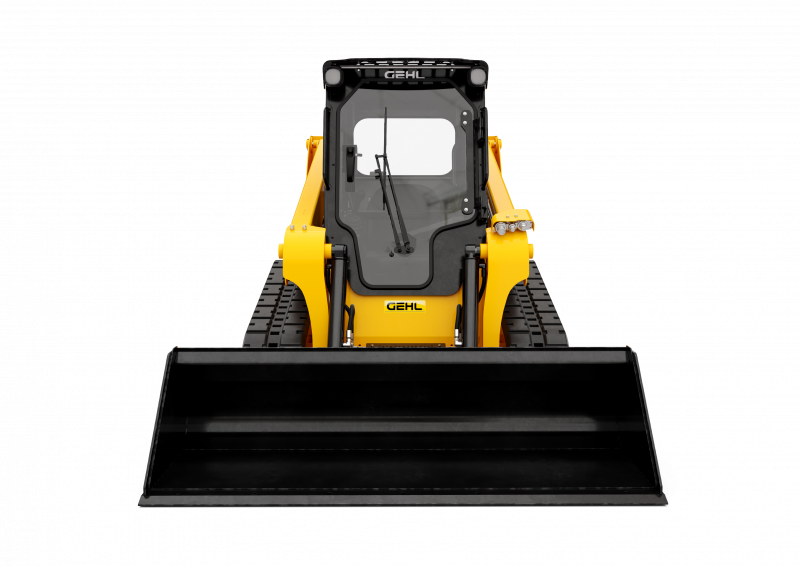

Gallery

Technical features

Capacities

Operating Weight

8020.41 lbs

Operating Capacity at 35% Tipping Load

1649.05 lbs

Operating Capacity At 50% Tipping Load

2356.74 lbs

Tipping capacity

4715.68 lbs

Weight and dimensions

Overall Operating Height - Fully Raised

13 ft 1.79 in

Height to Hinge Pin – Fully Raised

9 ft 11.60 in

Reach - Fully Raised

2 ft 1.23 in

Dump angle at full height

39 °

Dump Height - Fully Raised

7 ft 7.69 in

Maximum Rollback Angle - Fully Raised

98 °

Overall Height to Top of ROPS

6 ft 5.51 in

Overall length with bucket

10 ft 6.18 in

Overall Length without Bucket

7 ft 10.21 in

Specified Height

5 ft 4.48 in

Reach at Specified Height

1 ft 10 in

Dump angle at specified height

73 °

Maximum Rollback Angle at Ground

28 °

Carry Position

7.79 in

Maximum Rollback Angle at Carry Position

28 °

Digging Position

2.08 in

Ground clearance

7.28 in

Track gauge

4 ft 7.39 in

Track Shoe Width

1 ft 3.74 in

Crawler base

4 ft 1.80 in

Overall width less bucket

5 ft 7.99 in

Bucket Width

5 ft 5.98 in

Clearance Radius - Front with Bucket

6 ft 5.91 in

Clearance Circle - Rear

4 ft 8.69 in

Track Type / Track Rollers / Roller Type

Rubber / 4 / Steel

Performances

Ground Speed - Single Speed

6.52 mph

Drawbar Pull/Tractive Effort

9579.08 lbs

Bucket Breakout - Tilt Cylinder

4230.67 lbs

Bucket Breakout - Lift Cylinder

5059.60 lbs

Engine

Engine brand

Yanmar

Engine model

4TNV98C-NMS2V Stage V

Motor Type

Radial Piston

Gross Power (kW) / Gross Power

51.70 kW / 2500 rpm

Battery

12 V

Cold Cranking Amps at Temperature (CCA)

950 A

Alternator - Voltage / Ampere

112 V / 100 A

Hydraulics

Standard flow - Auxiliary hydraulics

71 l/min

Tank capacities

Oil Pan Capacity

2.37 US gal

Hydraulic tank capacity

10.30 US gal

Fuel tank

16.51 US gal

Displacement / Number of cylinders

0.87 US gal / 4
