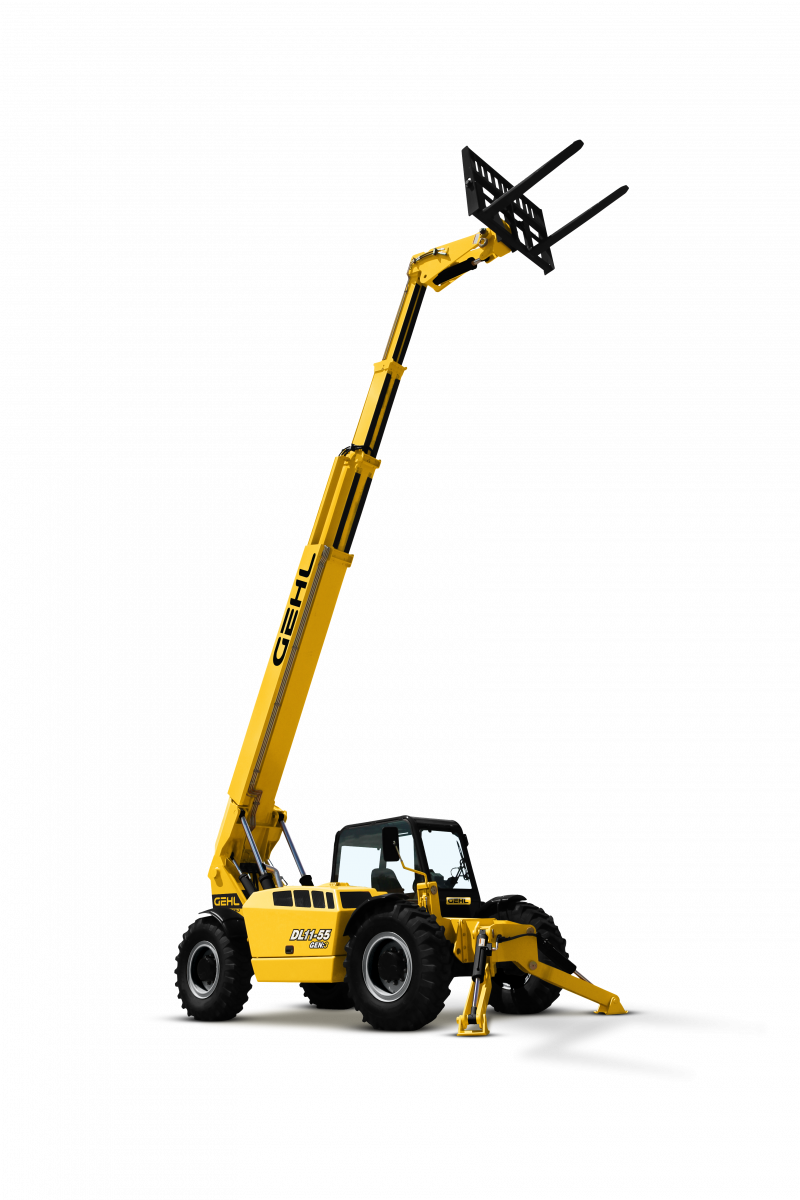

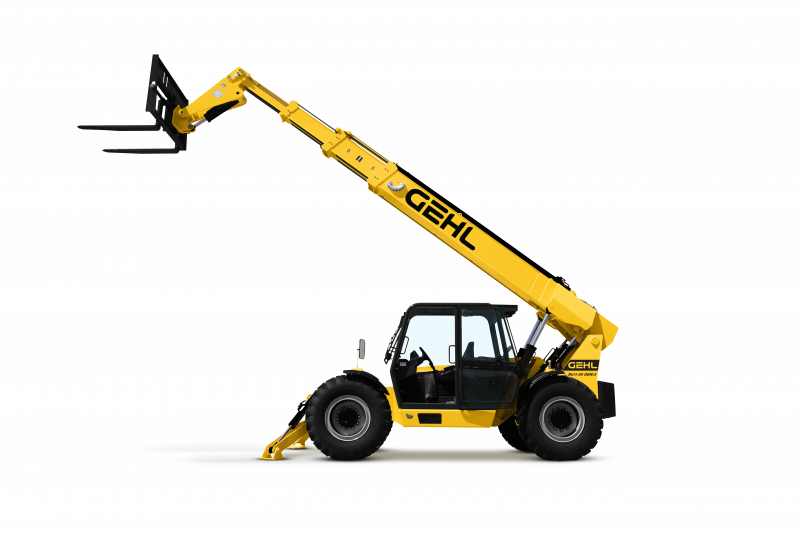

Construction telehandlers

DL11-55 GEN:3

Construction telehandlers

With outriggers standard on the GEHL DL11-55 GEN:3, you can find the stability, lift and reach you need to get any job done. The rear axle stabilization system locks the rear axle to the frame if the parking brake is engaged, the boom is raised higher than 60° or if the PWP System is activated, for added safety and stability on your jobsite. Come to work knowing your trusted GEHL DL11-55 GEN:3 will do the heavy lifting for you, safely and efficiently.

See more See less
11000 lb
55 ft 5 in
40 ft
120 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

11000 lb

Max. lifting height

55 ft 5 in

Max. outreach

40 ft

Weight and dimensions

Length to face of forks

21 ft

Overall width

8 ft 2 in

Overall height

8 ft 6 in

Wheelbase

10 ft 10 in

Ground clearance

16 in

Overall cab width

2 ft 11 in

External turning radius

12 ft 2 in

Unladen weight

28459 lb

Overall weight

28459 lb

Standard tyres

14X24

Frame levelling longitudinal +/-

10 °

Engine

Engine brand

Cummins

Engine norm

Tier 4 final

Engine model

QSF 3.8 Tier IV

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Engine rotation

2500 rpm

Transmission

Transmission type

Powershift

Number of gears (forward)

4

Max. travel speed

23 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

43 US gpm-3002 PSI

Tank capacities

Hydraulic oil

41 US gal

Fuel tank

30 US gal

Miscellaneous

Controls

Single joystick with FNR
