Construction telehandlers

GCT 3-14

Construction telehandlers

A cost-effective, multi-purpose machine designed to save you both time and money, the GCT 3-14 Telescopic Handler combines lift with height to deliver versatility on the job site. Offering 2,200lbs of lift capacity (for more lift, see the GCT 3-14+), this machine can lift, move, and place pallets of bricks, bales of hay, or whatever else your work demands. Designed for tough landscaping conditions or unpredictable environments like equestrian centers, the GCT 3-14 is a lightweight, ultra-compact machine that boasts all-terrain capabilities. It's built to go off-road, get in and out of tight spaces, and brave the path less taken. And with optional accessories like an automatic radiator cleaning system or tires with differing profiles, plus the ability to easily transport on a small trailer, this machine adapts to anything your workday throws at you—and gets it done right.

See more See less
2200 lb
14 ft 1 in
8 ft 7 in
35.10 Hp
Learn more about the GEHL warranty

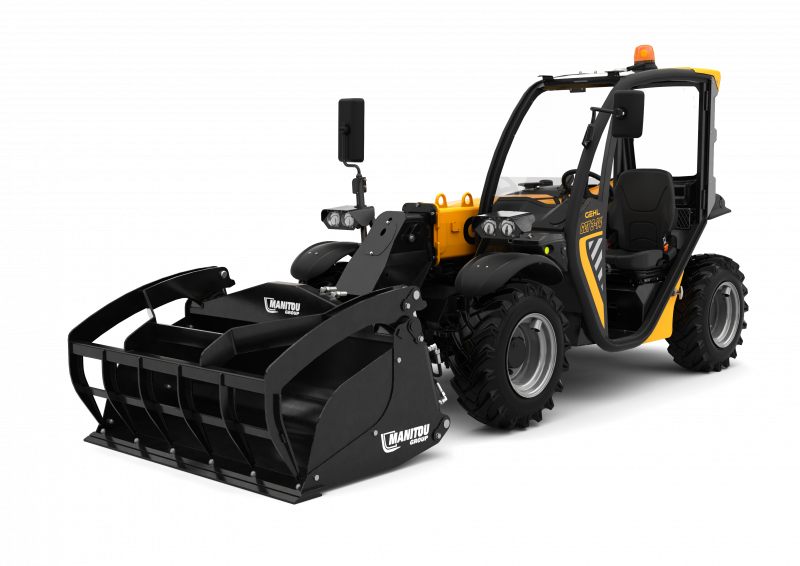

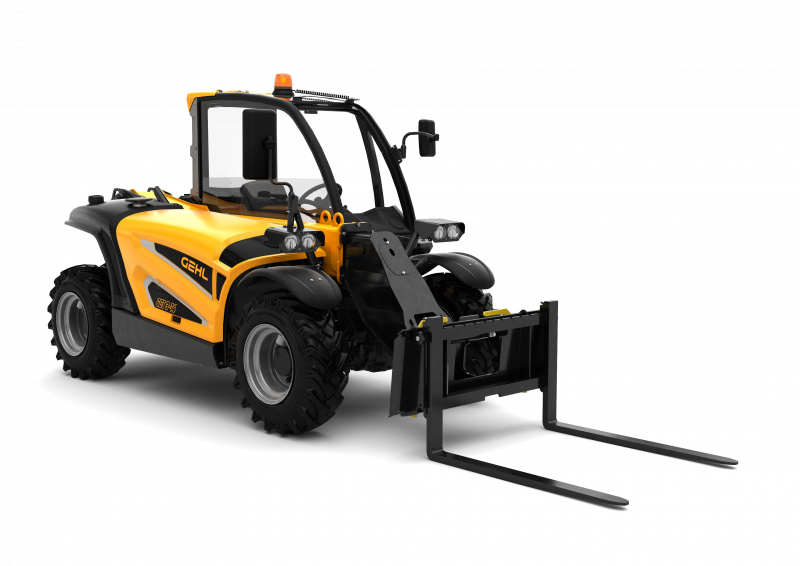

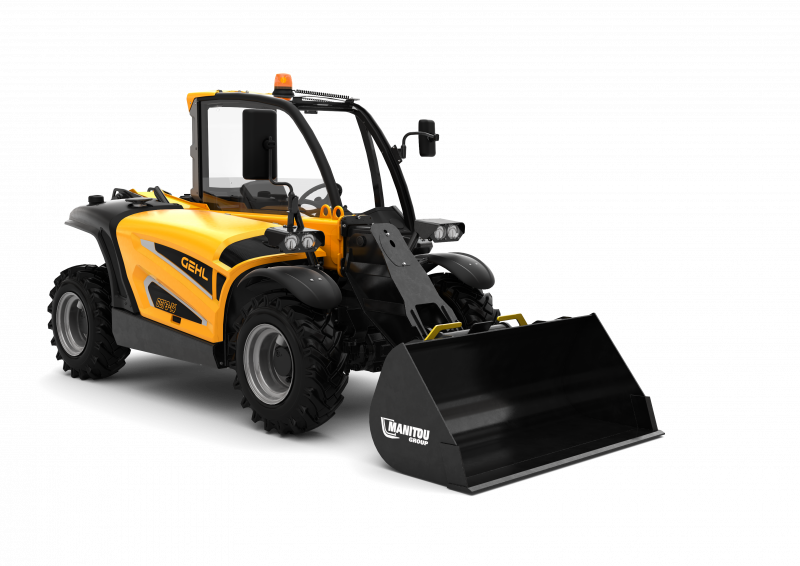

Gallery

Technical features

Capacities

Max. capacity

2200 lb

Max. lifting height

14 ft 1 in

Max. outreach

8 ft 7 in

Reach at max. height

3 ft 3 in

Breakout force with bucket

1880 daN

Weight and dimensions

Shipping mass (min. / max.)

5622 lb / 6063 lb

Ground clearance

11 in

Wheelbase

7 ft

Overall length to carriage (with hitch)

11 ft 5 in

Front overhang

2 ft 6 in

Overall width

4 ft 11 in

Overall cab width

2 ft 2 in

Overall height

6 ft 4 in

Tilt-down angle

116 °

Tilt-up angle

23 °

External turning radius (over tyres)

8 ft 7 in

Standard tires

CAMSO - MPT 552 - 10.0/75-15.3 124A8

Performances

Lifting

8.80 s

Lowering

7 s

Extension

6.40 s

Retraction

4.30 s

Crowd

3.40 s

Dump

2.60 s

Engine

Engine brand

Yanmar

Engine norm

Stage V / Tier 4 final

Engine model

3TNV88C-DMU

Number of cylinders - Capacity of cylinders

3 - 100 in³

I.C. Engine power rating / Power (kW)

35.10 Hp / 26.20 kW

Max. torque / Engine rotation

77 ft/lbs @1950 rpm

Drawbar pull (Laden)

2000 daN

Reversible fan

Option

Engine cooling system

3 radiators (water + hydraulic oil + fuel)

HVO validated (according to EN 15940 standard)

Yes

Transmission

Transmission type

Hydrostatic

Number of gears (forward / reverse)

2 / 2

Max. travel speed (may vary according to applicable regulations)

16 mph

Differential lock

Limited slip differential on front and rear axles

Parking brake

Automatic negative parking brake

Service brake

Hydraulic servo brake

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow - Pressure

13 US gpm - 3408 PSI

Flow sharing distributor

Standard

Tank capacities

Hydraulic oil

10 US gal

Fuel tank

9 US gal

Noise and vibration

Noise at driving position (LpA) tested following NF EN 12053 norm

76 dB

Environmental noise (LwA)

104 dB

Vibration to whole hand/arm

< 2.50 m/s²

Miscellaneous

Safety cab homologation

ROPS - FOPS level 1 cab

Controls

Joystick
