Construction Telehandlers

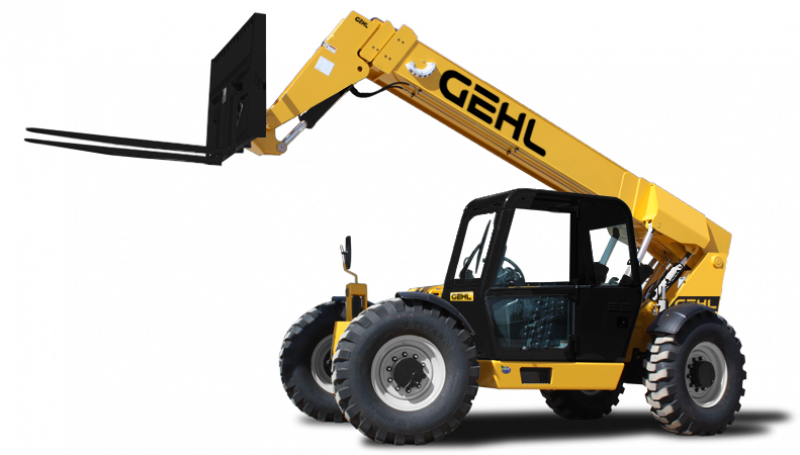

DL12-40 GEN:3

Construction Telehandlers

The DL12-40 GEN:3 is just the coworker you've been looking for. The F-N-R single joystick control allows for precise movement of heavy loads while the unmatched panoramic visibility increases safety on the jobsite. With 12,000lbs lifting capacity, this machine is going to work hard to get the job done. Manuever with ease and efficiency on the jobsite in this Telescopic Handler. Toughness you depend on and safety you can trust, because GEHL Works Like You.

See more See less
10000 lbs
40 ft 4 in
26 ft 3 in
120 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

10000.16 lbs

Max. lifting height

40 ft 4.25 in

Max. Reach

26 ft 2.96 in

Weight and dimensions

Overall length to carriage

19 ft 4.28 in

Overall width

8 ft 2.42 in

Overall height

7 ft 6.55 in

Wheelbase

10 ft 9.92 in

Ground clearance

1 ft 3.98 in

Overall cab width

8 ft 2.42 in

External turning radius (over tyres)

12 ft 1.66 in

Standard tyres

14X24

Frame levelling longitudinal +/-

10 °

Engine

Engine brand

Cummins

Engine norm

Tier IV Final

Engine model

QSF 3.8 Tier IV

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Engine rotation

2500 rpm

Transmission

Transmission type

Powershift

Max. travel speed

22.80 mph

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Open-center, Dual-Section

Hydraulic flow / Pressure

162.80 l/min / 3002.27 PSI

Tank capacities

Hydraulic oil

40.94 US gal

Fuel tank

30.11 US gal

Miscellaneous

Controls

Single Joystick FNR
