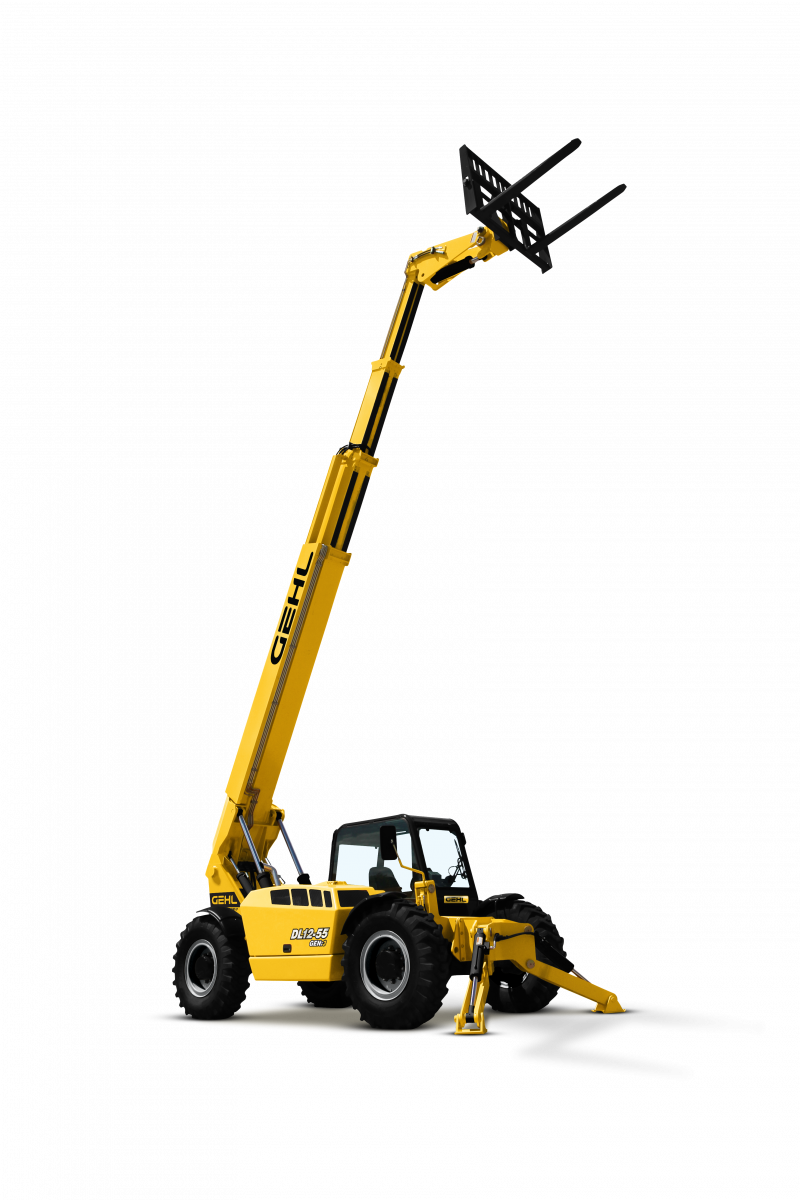

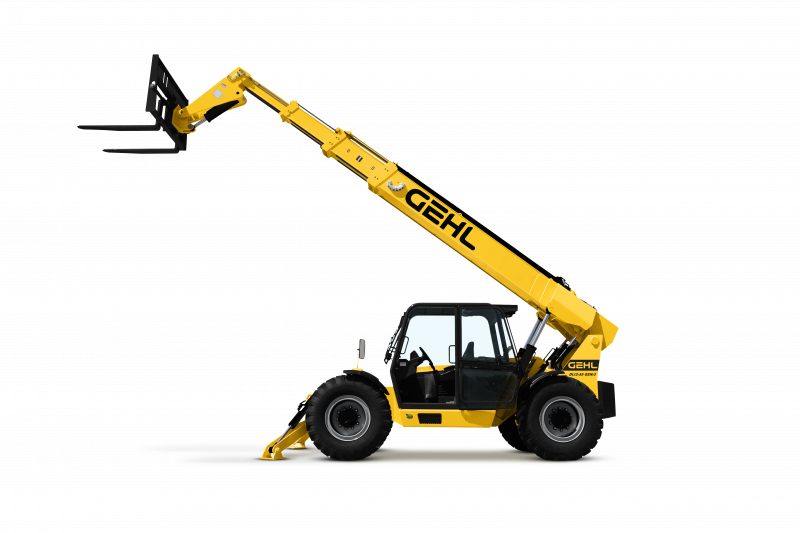

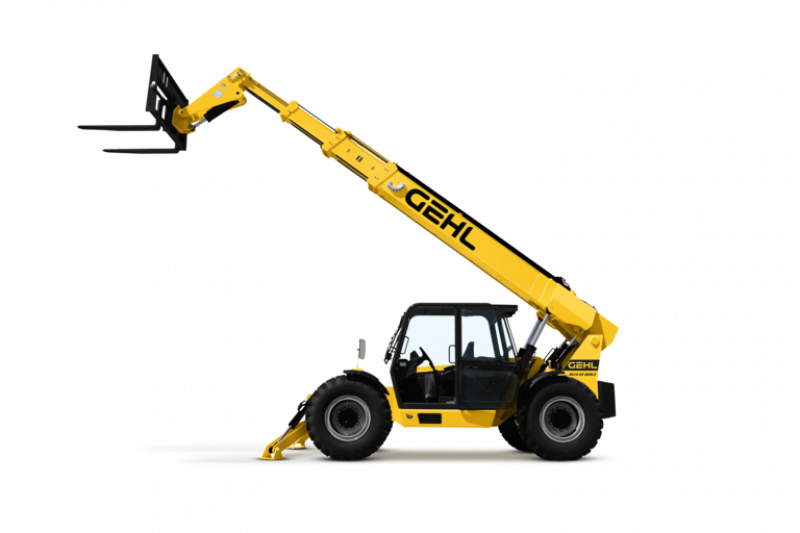

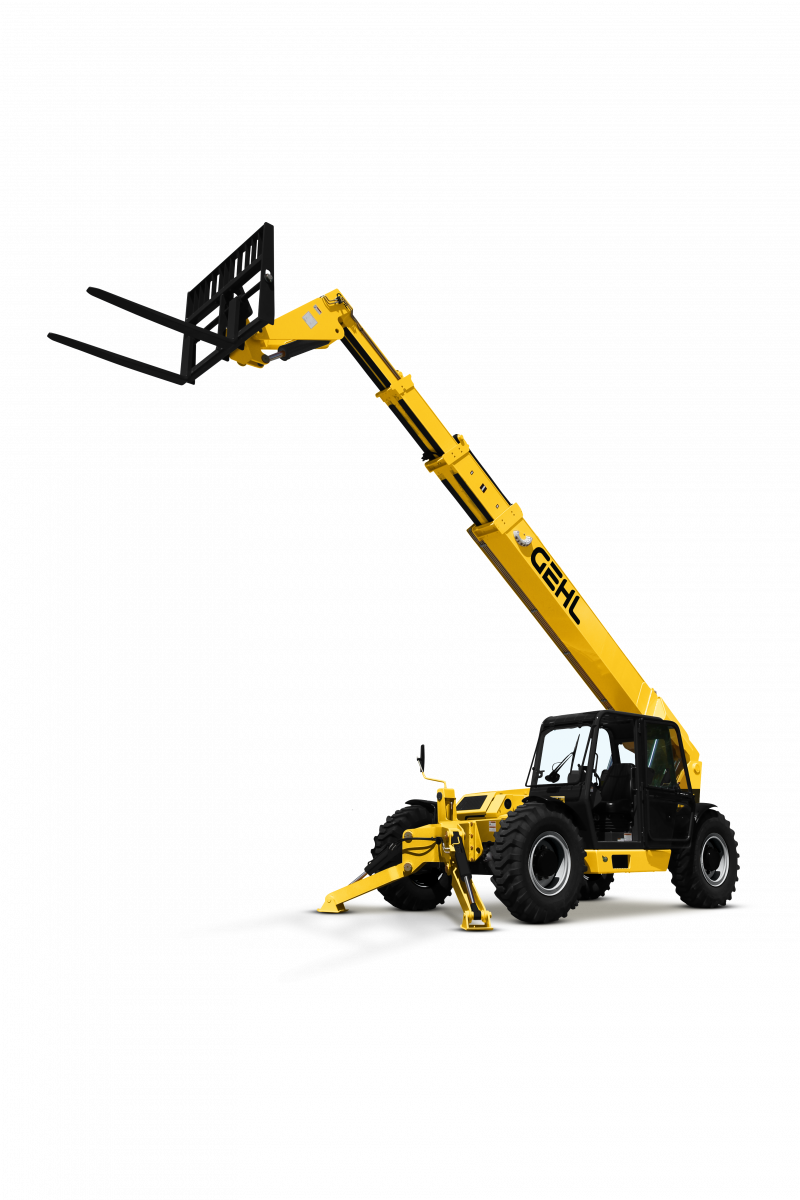

DL12-55 GEN:3

Construction Telehandlers

Move heavy loads on any jobsite with this proven performer. Sturdy, durable and packed with power, the DL12-55 is ready to meet the needs on the toughest jobsite. With an industry-leading turn radius of 12' 2", regardless of size, you can manuever with ease. Increase your productivity and get the gritty job done, because this machine Works Like You.

See more See less
12002 lbs
55 ft 5 in
40 ft
120 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

12001.96 lbs

Max. lifting height

55 ft 5.35 in

Max. Reach

40 ft 0.31 in

Weight and dimensions

Overall length to carriage

20 ft 8.03 in

Overall width

8 ft 2.42 in

Overall height

8 ft 6.36 in

Wheelbase

10 ft 9.92 in

Ground clearance

1 ft 3.98 in

Overall cab width

8 ft 2.42 in

External turning radius

2 ft 10.64 in

Unladen weight

31841.36 lbs

Standard tyres

14 x 24

Frame levelling longitudinal +/-

10 °

Engine

Engine brand

Cummins

Engine norm

Tier IV Final

Engine model

QSF 3.8 Tier IV

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Engine rotation

2500 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

4 / 4

Max. travel speed

22.80 mph

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

162.80 l/min / 3002.27 PSI

Tank capacities

Hydraulic oil

40.94 US gal

Fuel tank

30.11 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single Joystick FNR
