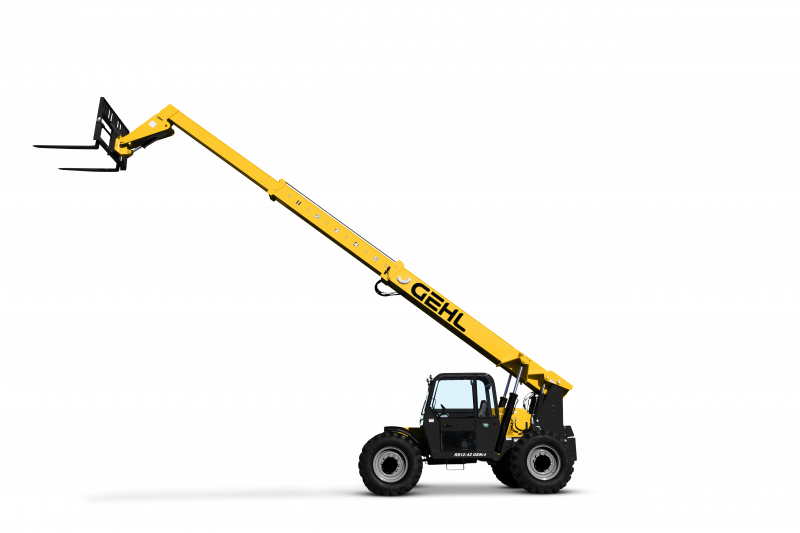

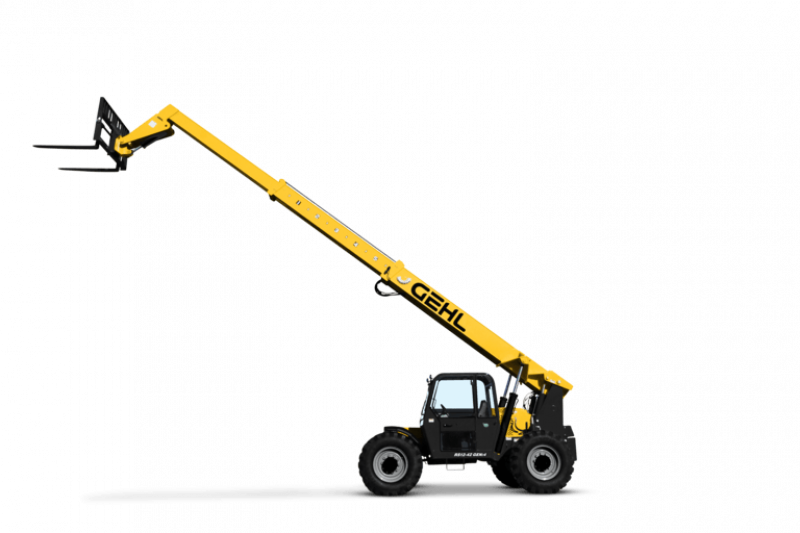

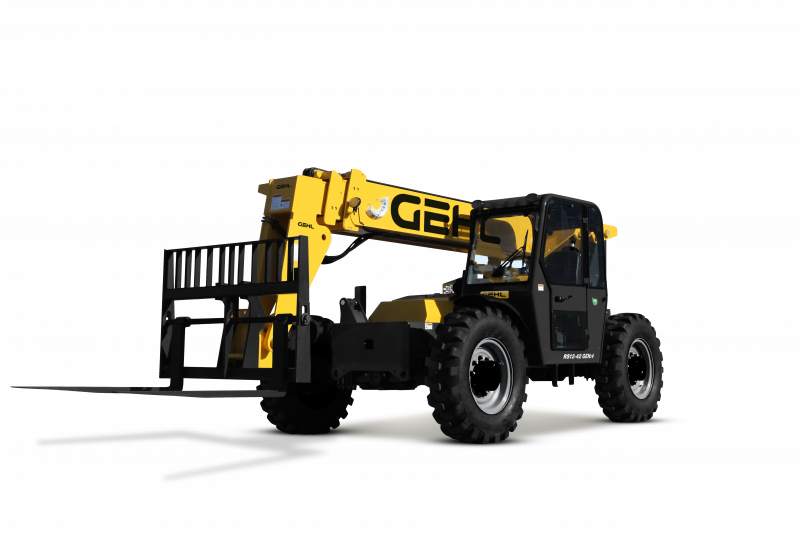

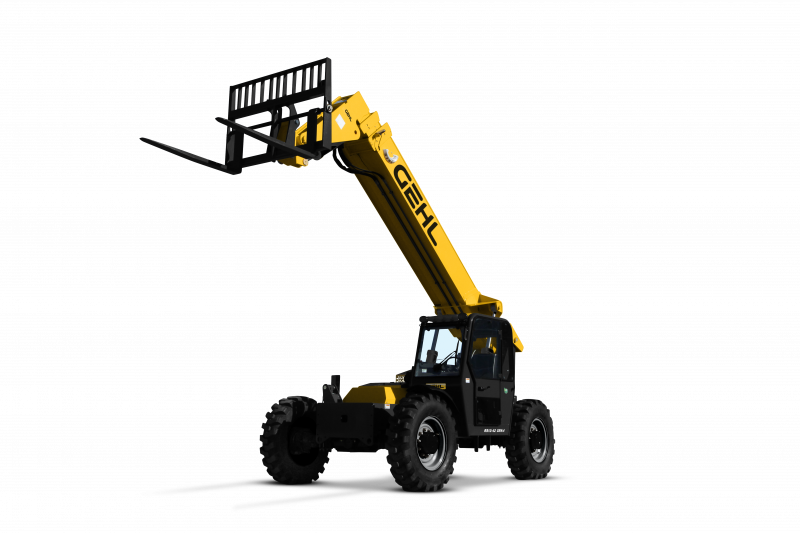

RS 12-42 GEN:4

Construction telehandlers

This Rental Series master has a 42' reach and 12,000lb lifting capactiy, getting you where you need to go on the jobsite. Take a break from getting your hands dirty and let the machine do the work for you. Undeniable visibilty, unbeatable lift capacity and the necessary strength and power to get your toughest job done, with ease.

See more See less
Ask for a quote Find a dealer
12000 lb
42 ft 4 in
27 ft 11 in
120 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

12000 lb

Max. lifting height

42 ft 4 in

Max. outreach

27 ft 11 in

Weight and dimensions

Overall length to carriage

19 ft 3 in

Length to face of forks

19 ft 4 in

Overall width

8 ft 3 in

Overall height

7 ft 11 in

Wheelbase

10 ft 4 in

Ground clearance

18 in

Overall cab width

33 in

Tilt-up angle

12 °

Tilt-down angle

112 °

External turning radius

13 ft 11 in

Unladen weight (with forks)

25201 lb

Overall weight

25200 lb

Standard tyres

14 x 24

Frame levelling longitudinal +/-

10 °

Frame levelling corrector

10 °

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 0.23 in³

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Max. torque / Engine rotation

354 ft/lbs @ 1600 rpm

Transmission

Transmission type

Torque converter with powershift

Number of gears (forward / reverse)

4 / 3

Max. travel speed

20 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

41 US gpm-3002 PSI

Tank capacities

Engine oil

4 US gal

Hydraulic oil

45 US gal

Fuel tank

47 US gal

DEF tank capacity

5 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single joystick with FNR
