Construction Telehandlers

RS 4-14 Gen: 3

Construction Telehandlers

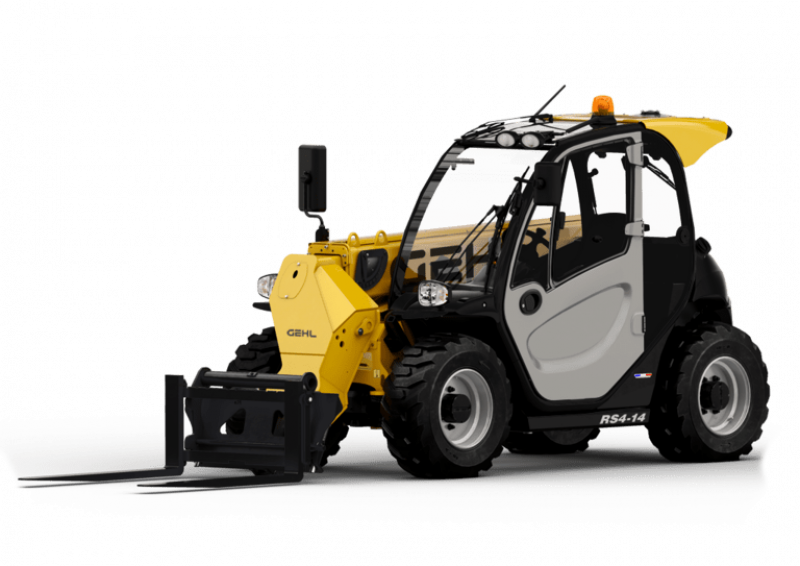

Super compact with full-size performance, this little guy packs a punch in the tightest of spaces. The RS4-14 doesn't sacrifice comfort for size, with a full-size operator station and 360-degree visibility, you'll sit comfortably until the job is done. There are three steering modes of 2-wheel, 4-wheel and crab that can be switched with a simple click of a button at your fingertips. Maneuver around tight corners on the jobsite with ease in this small but mighty RS4-14.

See more See less
4400 lbs
14 ft 3 in
9 ft
56.3 Hp
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. capacity

4400 lbs

Max. lifting height

14 ft 2.86 in

Max. Reach

8 ft 11.87 in

Breakout force with bucket

1886 daN

Weight and dimensions

Overall length to carriage

11 ft 11.30 in

Overall width

4 ft 10.66 in

Overall height

6 ft 3.19 in

Wheelbase

6 ft 11.85 in

Ground clearance

9.44 in

Overall cab width

2 ft 7.49 in

Tilt-up angle

12 °

Tilt-down angle

116 °

External turning radius (over tyres)

10 ft 0.86 in

Unladen weight (with forks)

9237.36 lbs

Tyres type

Pneumatic

Standard tyres

Camso SKS-532 - 12 - 16.5-12PR

Forks length / width / section

3 ft 11.24 in x 4.92 in / 1.77 in

Performances

Lifting

5 s

Lowering

3.50 s

Extension

4.80 s

Retraction

3 s

Crowd

3.30 s

Dump

2.70 s

Engine

Engine brand

Kubota

Engine norm

Stage V

Engine model

2607-CR-E5

Number of cylinders / Capacity of cylinders

4 - 159.57 in³

I.C. Engine power rating - Power (kW)

56.30 Hp / 42 kW

Max. torque / Engine rotation

174 Nm @ 2700 rpm

Drawbar pull (Laden)

2850 daN

Transmission

Transmission type

Hydrostatic

Number of gears (forward / reverse)

2 / 2

Max. travel speed

15.53 mph

Parking brake

Automatic Negative Hand-brake

Service brake

Disk brake on the cadran shaft

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

75.71 l/min / 3408.38 PSI

Tank capacities

Engine oil

2.69 US gal

Hydraulic oil

18 US gal

Fuel tank

15.85 US gal

Noise and vibration

Noise at driving position (LpA)

76 dB(A)

Noise to environment (LwA)

104 dB(A)

Vibration on hands/arms

< 2.50 m/s²

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety / Safety cab homologation

Standard EN 15000 / ROPS - FOPS cab (level 1)

Controls

JSM
