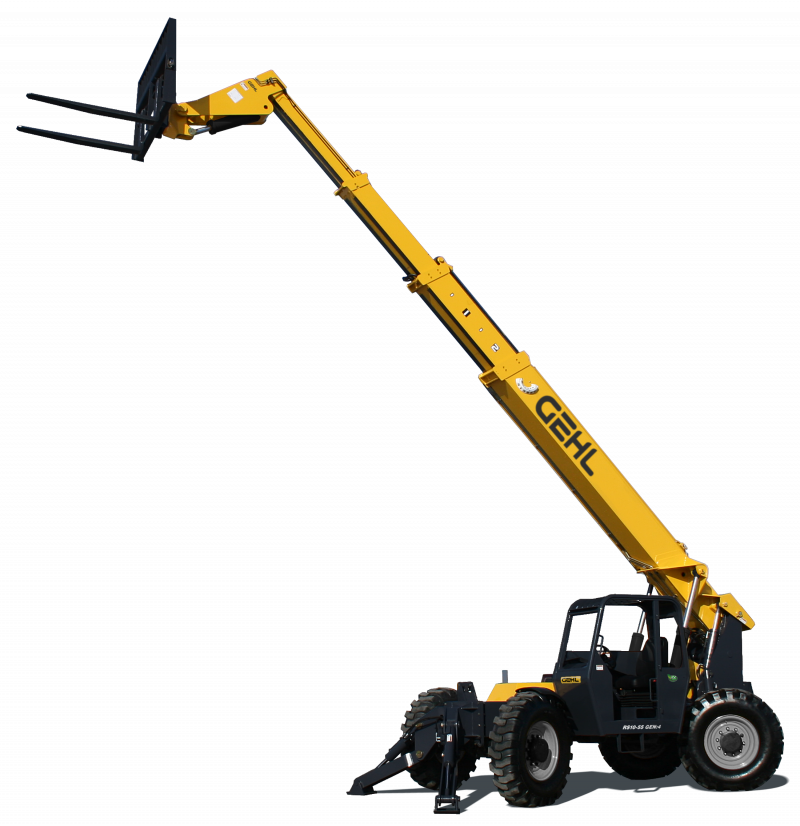

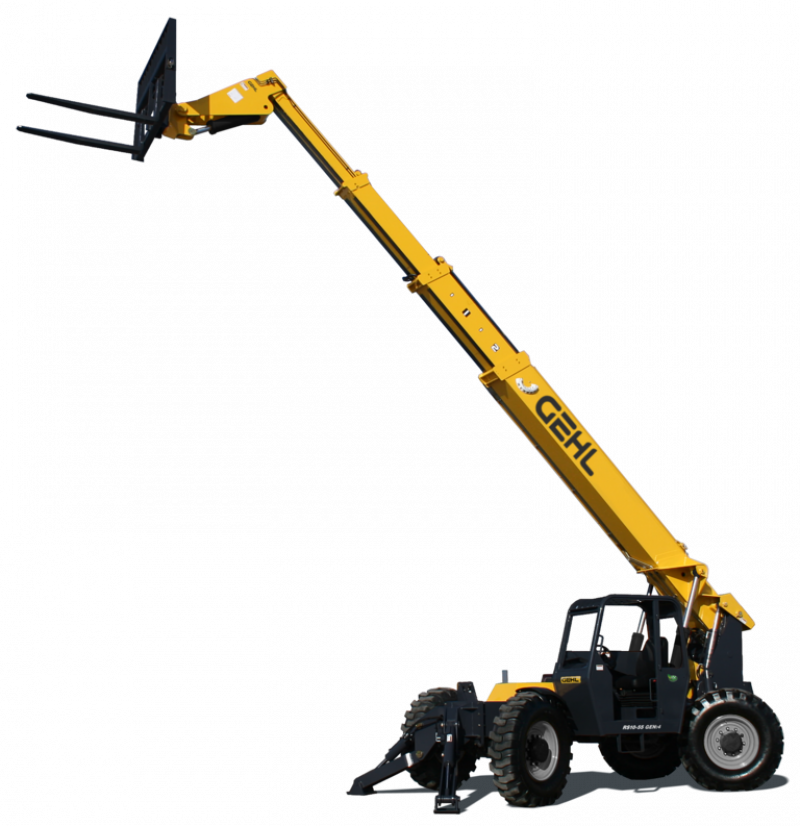

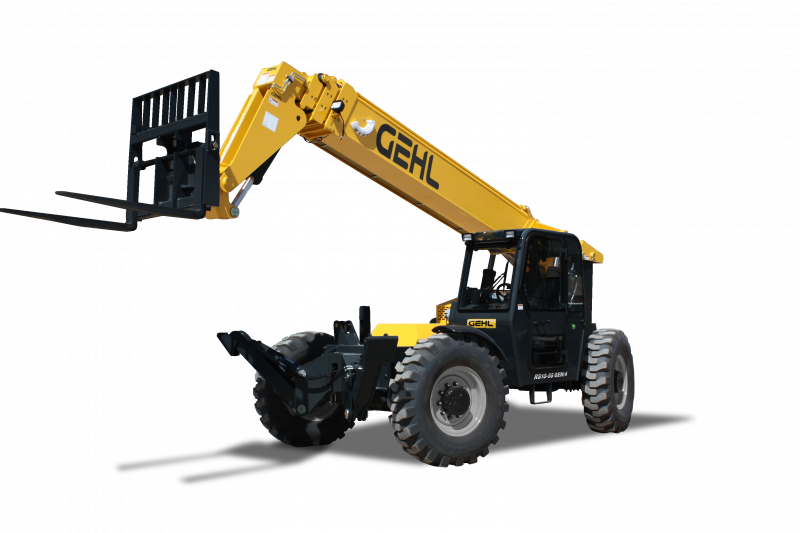

RS10-55 GEN:4

Construction Telehandlers

Pack a punch on the jobsite, without the need for DEF. You'll never imagine the power this 74hp machine brings to the jobsite. With the same lifting capacity and reach of its 120hp counterpart, you'll have the power needed to get the job done with speed and ease. This Telescopic Handler has the reach and manueverability you need to get the job done.

See more See less
10000 lb
55 ft 1 in
41 ft 2 in
120 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

10000 lb

Max. lifting height

55 ft 1 in

Max. outreach

41 ft 2 in

Weight and dimensions

Overall length to carriage

21 ft

Overall length (with forks)

21 ft

Overall width

8 ft 3 in

Overall height

8 ft 6 in

Wheelbase

10 ft 4 in

Ground clearance

18 in

Overall cab width

33 in

Tilt-up angle

12 °

Tilt-down angle

112 °

External turning radius

13 ft 11 in

Unladen weight (with forks)

27800 lb

Overall weight

27800 lb

Standard tyres

14 x 24

Frame levelling longitudinal +/-

10 °

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

I.C. Engine power rating - Power (kW)

120 Hp / 119 Hp

Max. torque / Engine rotation

354 ft/lbs @ 1600 rpm

Transmission

Transmission type

Torque converter with powershift

Number of gears (forward / reverse)

4 / 3

Travel speed (laden)

20 mi/h

Max. travel speed

20 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

41 US gpm / 3002 PSI

Tank capacities

Engine oil

4 US gal

Hydraulic oil

45 US gal

Fuel tank

47 US gal

DEF tank capacity

5 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single joystick with FNR
