Construction telehandlers

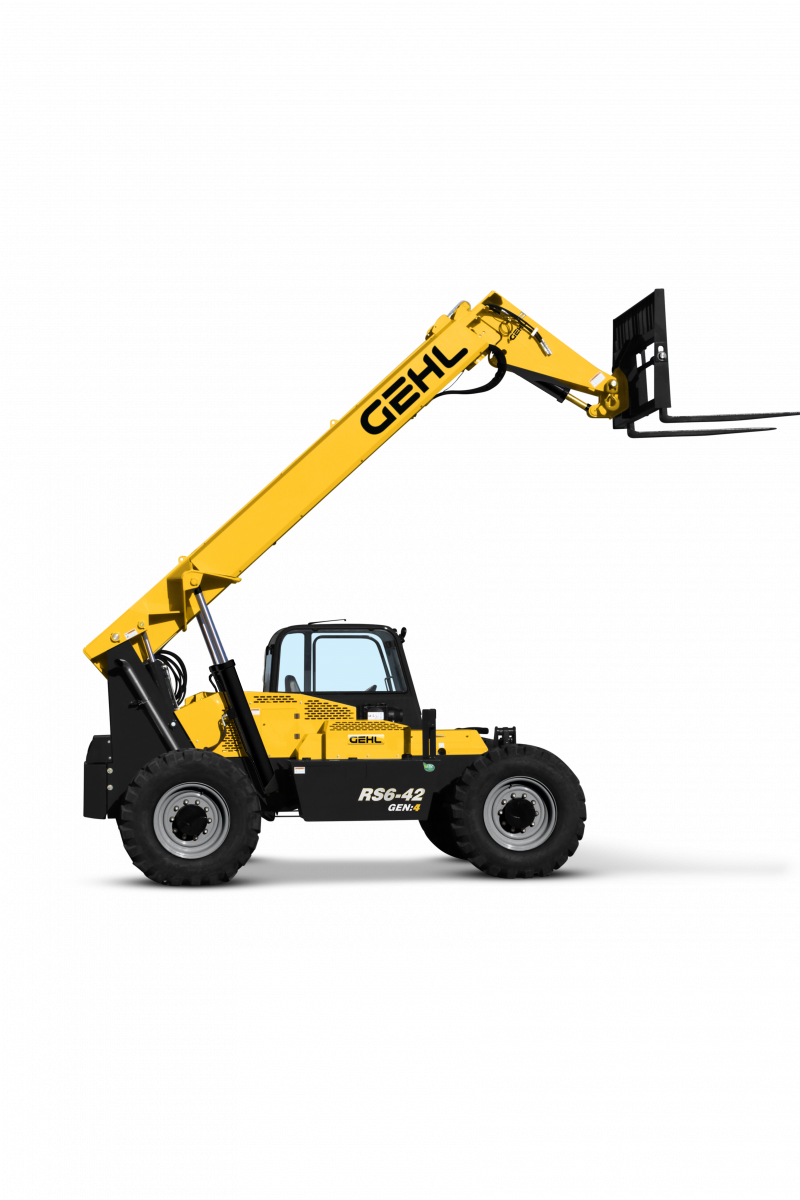

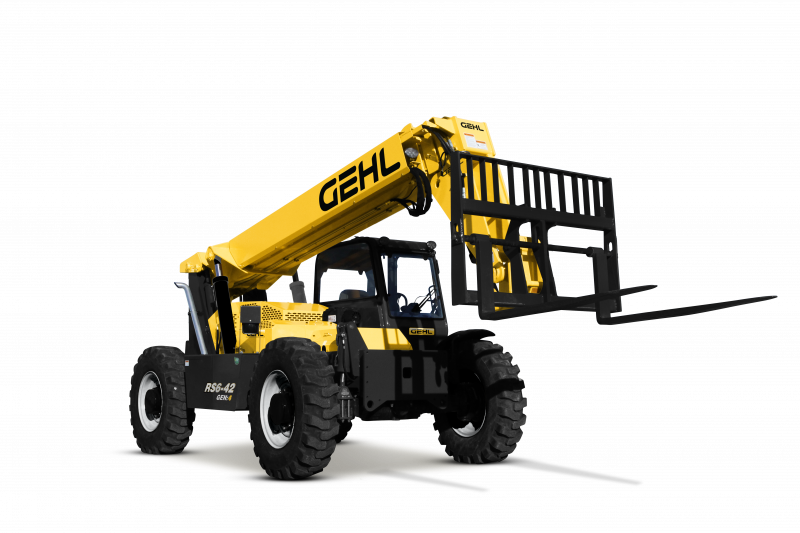

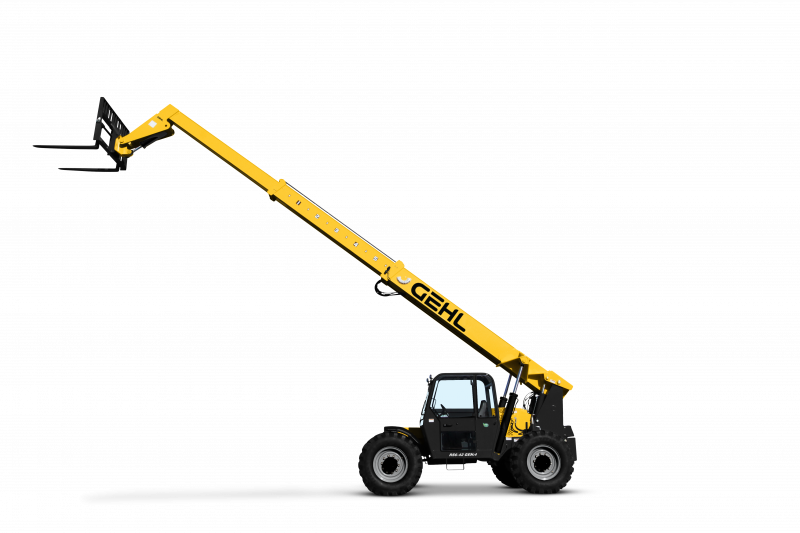

RS6-42 GEN:4

Construction telehandlers

If you need a little more reach for that capacity, look no further than the RS6-42. She's ready to give you the power you need to finish the job at hand. Whether it be roofing, siding or masonry work, this machine is a force of nature. The RS6-42 is willing and ready to push you through your work day and get you back to the home you dream of all day long.

See more See less
Ask for a quote Find a dealer
6600 lb
42 ft
28 ft 3 in
120 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

6600 lb

Max. lifting height

42 ft

Max. outreach

28 ft 3 in

Weight and dimensions

Length to face of forks

19 ft 1 in

Overall width

8 ft 2 in

Overall height

7 ft 10 in

Wheelbase

9 ft 11 in

Ground clearance

16 in

Overall cab width

33 in

Tilt-up angle

12 °

Tilt-down angle

112 °

External turning radius

13 ft 8 in

Unladen weight (with forks)

22000 lb

Overall weight

22000 lb

Standard tyres

13 x 24

Frame levelling longitudinal +/-

10 °

Frame levelling corrector

10 °

Engine

Engine brand

Deutz

Engine norm

Tier 4 final

Engine model

TCD 3.6 L4

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Max. torque / Engine rotation

354 ft/lbs @ 1600 rpm

Transmission

Transmission type

Torque converter with powershift

Number of gears (forward / reverse)

3 / 3

Max. travel speed

20 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

42 US gpm-3002 PSI

Tank capacities

Engine oil

4 US gal

Hydraulic oil

45 US gal

Fuel tank

47 US gal

DEF tank capacity

5 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single joystick with FNR
