Construction telehandlers

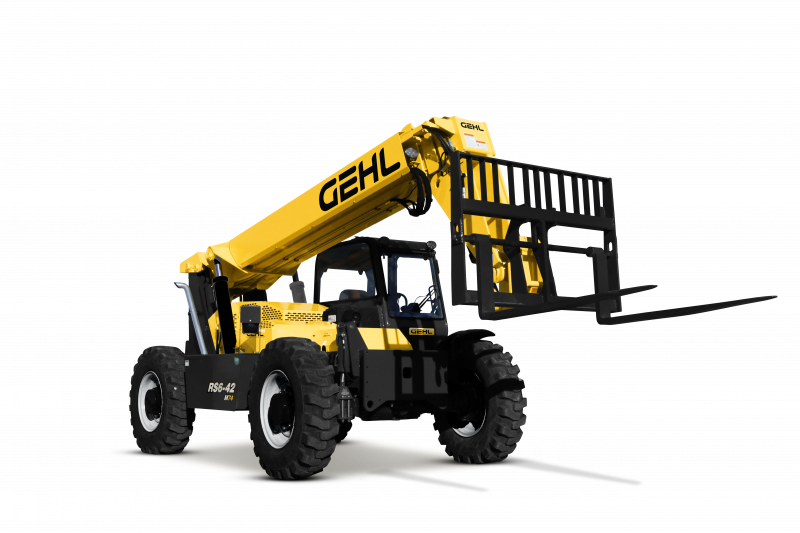

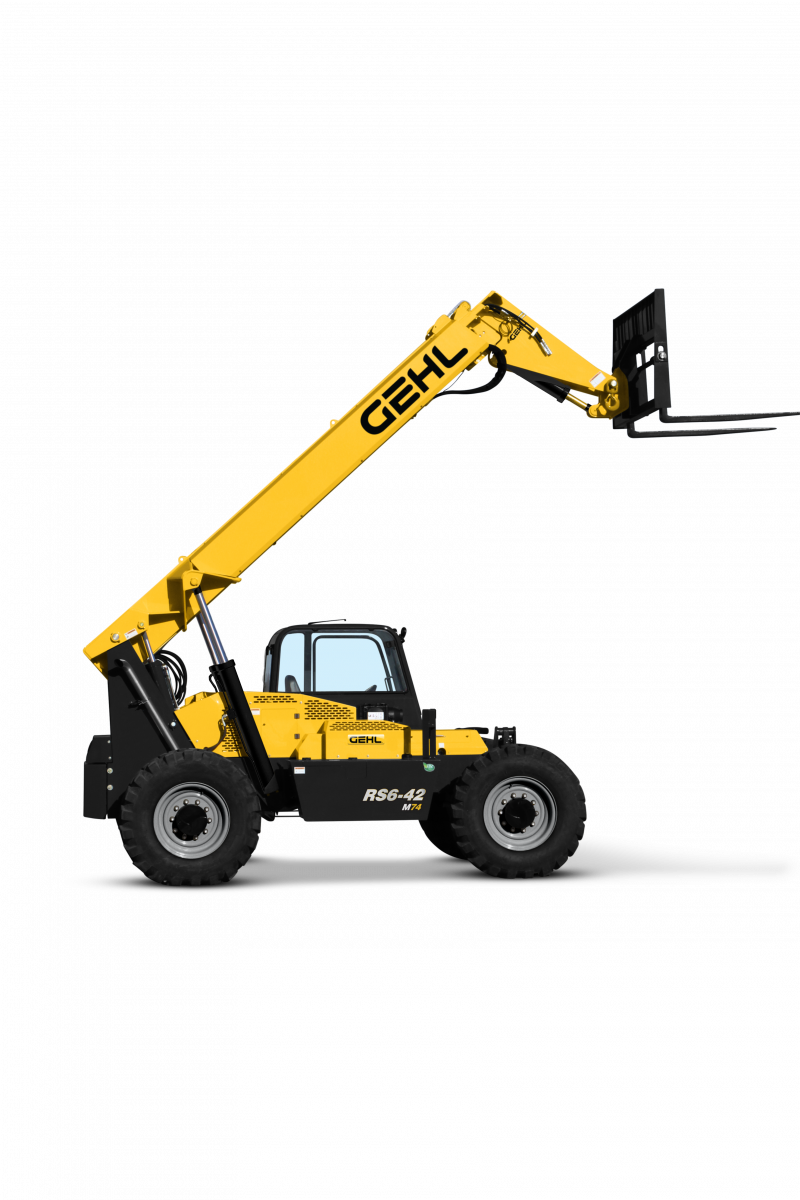

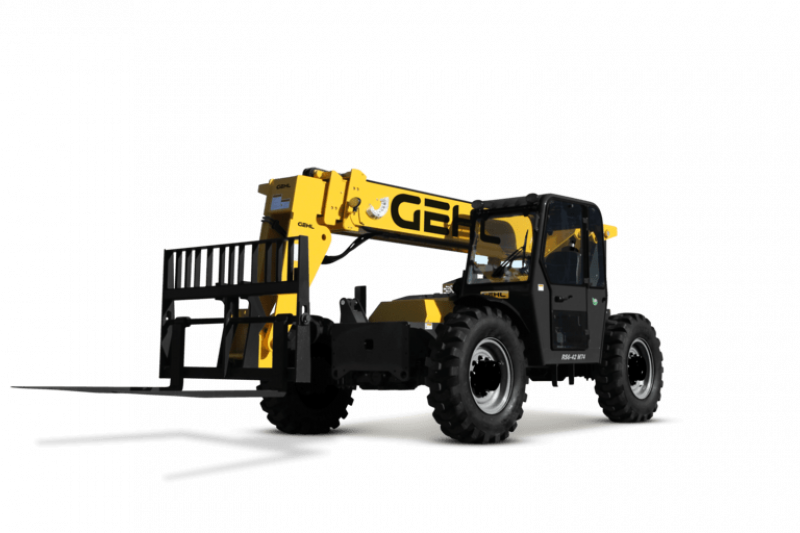

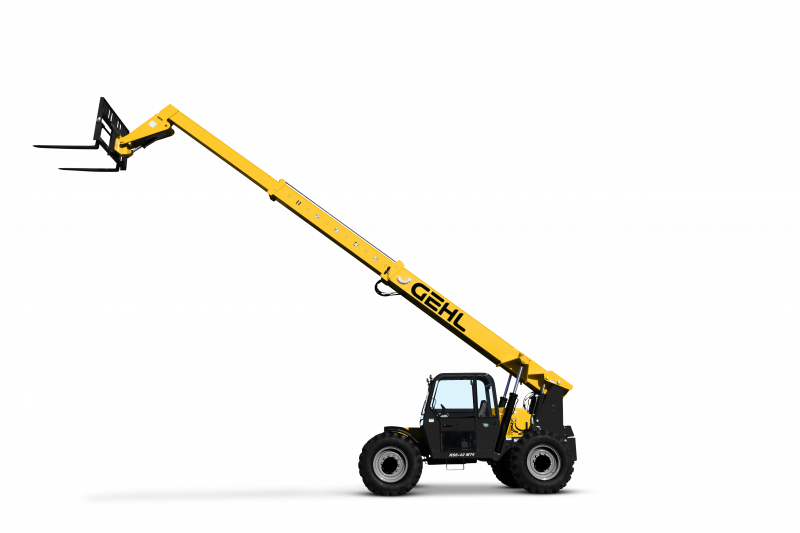

RS6-42 M74

Construction telehandlers

No DEF? No problem! Get the most out of your money with this 74hp machine. Powerful enough to get the job done, without the need for the added expense of DEF fluid you can cross that item off your budget. Always spacious and just as durable as its 120hp counterpart, if you're looking for added uptime and all the power expected of a GEHL, look no further. The RS6-42 Mark74 was made for you.

See more See less
6600 lb
42 ft
28 ft 3 in
7 ft 10 in
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

6600 lb

Max. lifting height

42 ft

Max. outreach

28 ft 3 in

Weight and dimensions

Length to face of forks

19 ft 1 in

Overall width

8 ft 2 in

Overall height

7 ft 10 in

Wheelbase

10 ft

Ground clearance

16 in

Overall cab width

33 in

Tilt-up angle

12 °

Tilt-down angle

112 °

External turning radius

13 ft 8 in

Unladen weight (with forks)

22000 lb

Unladen weight

22000 lb

Overall weight

22000 lb

Standard tyres

13 x 24

Forks length / width / section

47 in x 5 in / 2 in

Frame levelling corrector

10 °

Performances

Lifting

11 s

Lowering

8 s

Extension

14 s

Retraction

12 s

Crowd

7 s

Dump

4 s

Engine

Engine brand

Deutz

Engine norm

Stage IV / Tier 4 Final

Engine model

TCD 3.6 L4

Number of cylinders / Capacity of cylinders

4 - 0.23 in³

Power (kW)

55 kW

Max. torque / Engine rotation

288 ft/lbs @ 1300 rpm

Transmission

Transmission type

Torque converter with powershift

Number of gears (forward / reverse)

4 / 3

Max. travel speed

15 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

41 US gpm-3002 PSI

Tank capacities

Engine oil

4 US gal

Hydraulic oil

45 US gal

Fuel tank

47 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single joystick with FNR
