Construction telehandlers

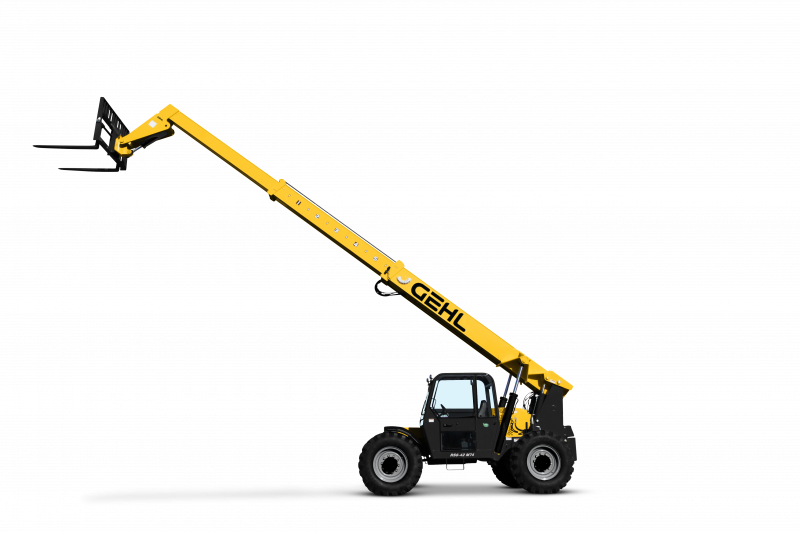

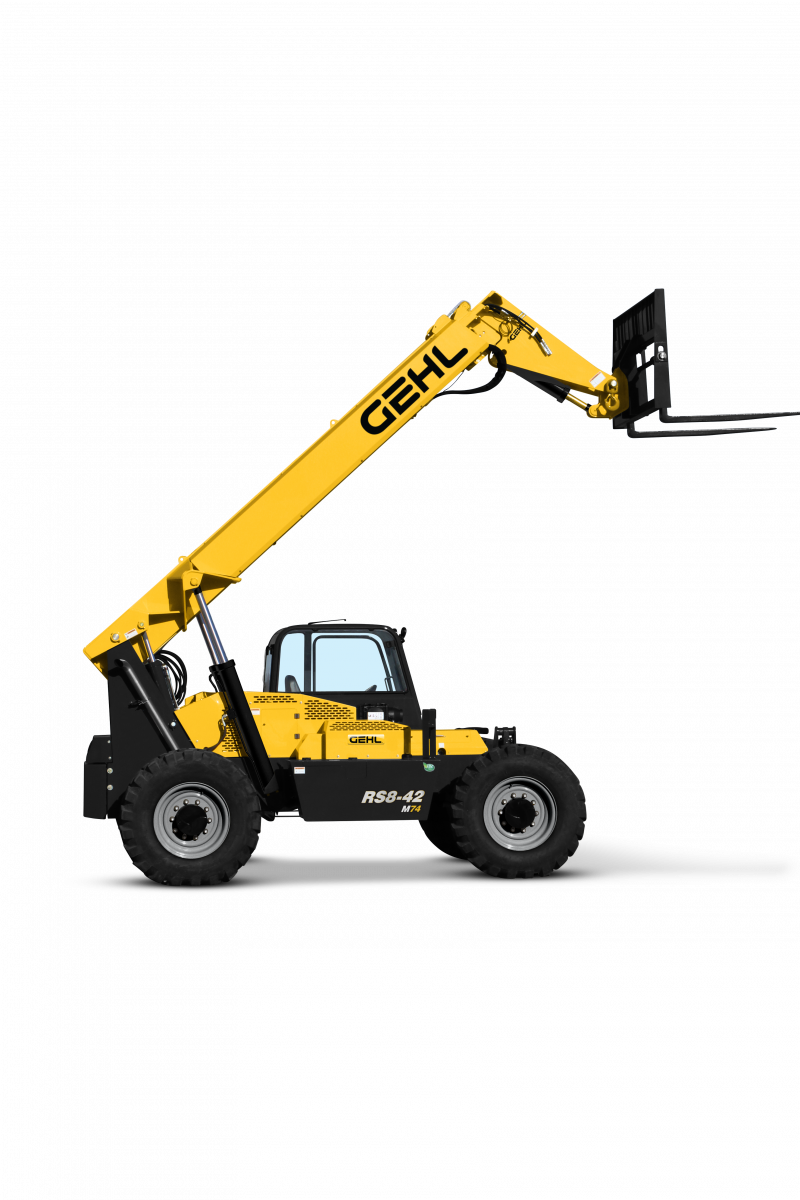

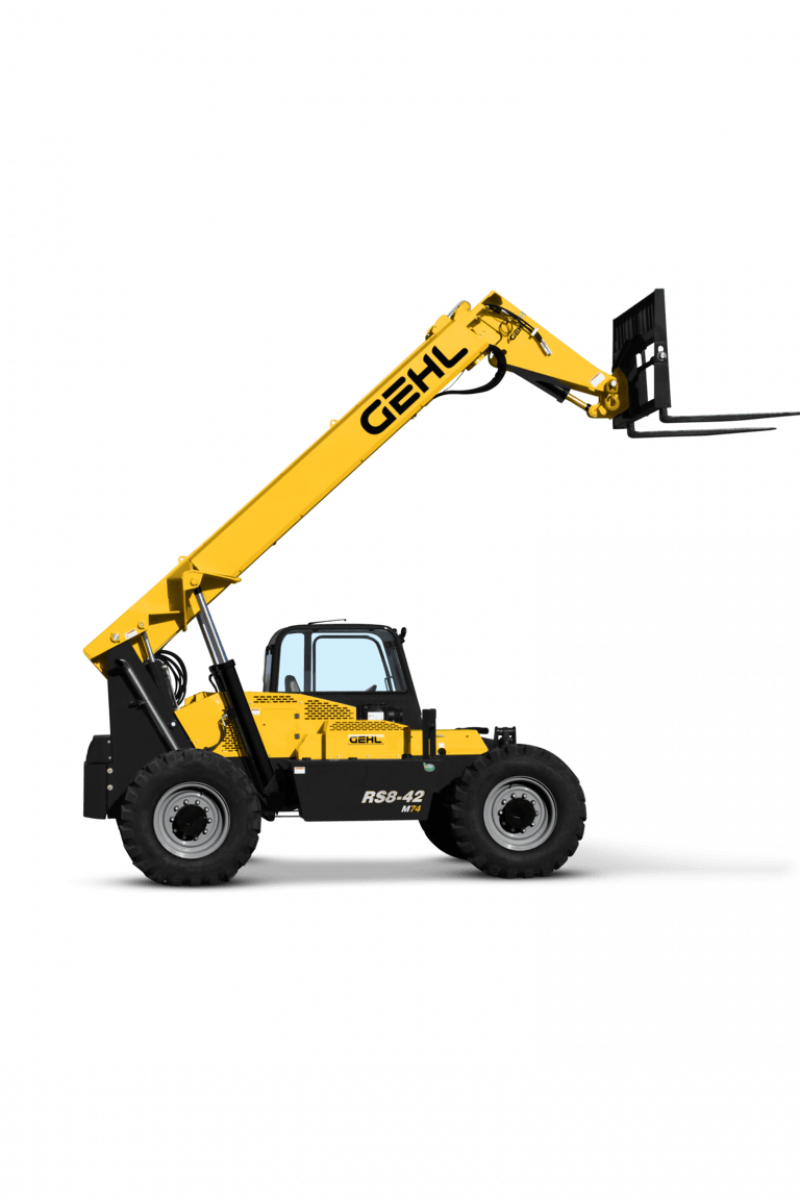

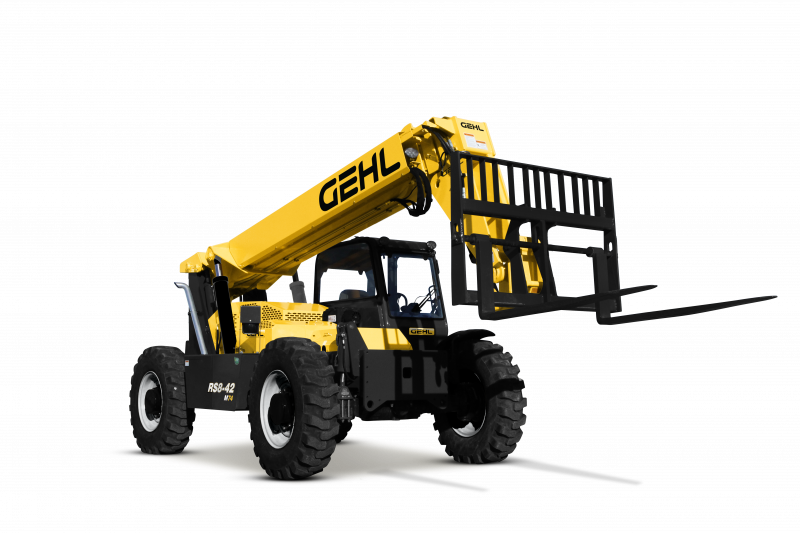

RS8-42 M74

Construction telehandlers

Forget the hassle of adding DEF fluid during the work day. For low-speed jobsites, the RS8-42 Mark74 Telehandler is the perfect machine for you. With 42' reach and 8,000lb lifting capacity, you're sure to get the toughest job done with ease. Just like GEHL, this machine Works Like You.

See more See less
8000 lb
42 ft
28 ft 3 in
74 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

8000 lb

Max. lifting height

42 ft

Max. outreach

28 ft 3 in

Weight and dimensions

Length to face of forks

19 ft

Overall width

8 ft 2 in

Overall height

7 ft 10 in

Wheelbase

10 ft

Ground clearance

16 in

Overall cab width

2 ft 9 in

External turning radius

13 ft 8 in

Unladen weight

23349 lb

Overall weight

23351 lb

Standard tyres

13x24

Frame levelling longitudinal +/-

10 °

Engine

Engine brand

Deutz

Engine norm

Stage IV

Engine model

TCD 3.6 L4

I.C. Engine power rating - Power (kW)

74 Hp / 89 kW

Max. torque / Engine rotation

288 ft/lbs @ 1300 rpm

Transmission

Transmission type

Powershift

Number of gears (forward / reverse)

4 / 3

Max. travel speed

15 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic flow / Pressure

41 US gpm-3002 PSI

Tank capacities

Hydraulic oil

31 US gal

Fuel tank

47 US gal

Miscellaneous

Controls

Single joystick with FNR
