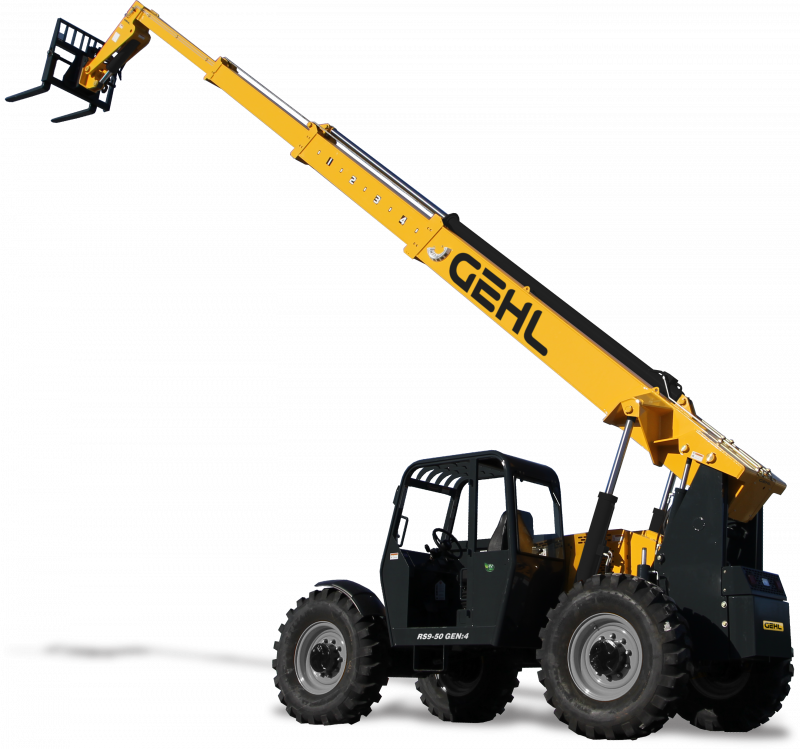

RS9-50 GEN:4

Construction telehandlers

The RS9-50 has all the great features of the RS-Series combined with an industry leading 50 foot lift without the need for front stabilizers. Increase your material placement efficiency with this 9,000 lbs. pick and carry machine that takes 5,000 lbs to 50 feet.

See more See less
Ask for a quote Find a dealer
9000 lb
50 ft 1 in
36 ft 7 in
120 Hp
Learn more about the GEHL warranty

Technical features

Capacities

Max. capacity

9000 lb

Max. lifting height

50 ft 1 in

Max. outreach

36 ft 7 in

Weight and dimensions

Length to face of forks

21 ft

Overall width

8 ft 4 in

Overall height

8 ft 6 in

Wheelbase

10 ft 4 in

Ground clearance

18 in

Overall cab width

27 ft 6 in

External turning radius

13 ft 11 in

Unladen weight (with forks)

29901 lb

Overall weight

29899 lb

Standard tyres

14 x 24

Frame levelling longitudinal +/-

10 °

Frame levelling corrector

10 °

Engine

Engine brand

Deutz

Engine norm

Stage IV / Tier 4 Final

Engine model

TCD 3.6 L4

I.C. Engine power rating - Power (kW)

120 Hp / 89 kW

Max. torque / Engine rotation

354 ft/lbs @ 1600 rpm

Transmission

Transmission type

Torque converter with powershift

Number of gears (forward / reverse)

4 / 3

Max. travel speed

19 mi/h

Parking brake

SAHR

Service brake

Wet disc brakes

Axle Manufacturer

Dana

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow / Pressure

41 US gpm-3002 PSI

Tank capacities

Hydraulic oil

31 US gal

Fuel tank

47 US gal

Miscellaneous

Steering wheels (front / rear)

2 / 2

Drive wheels (front / rear)

2 / 2

Safety cab homologation

ROPS/FOPS

Controls

Single joystick with FNR
