Articulated loaders

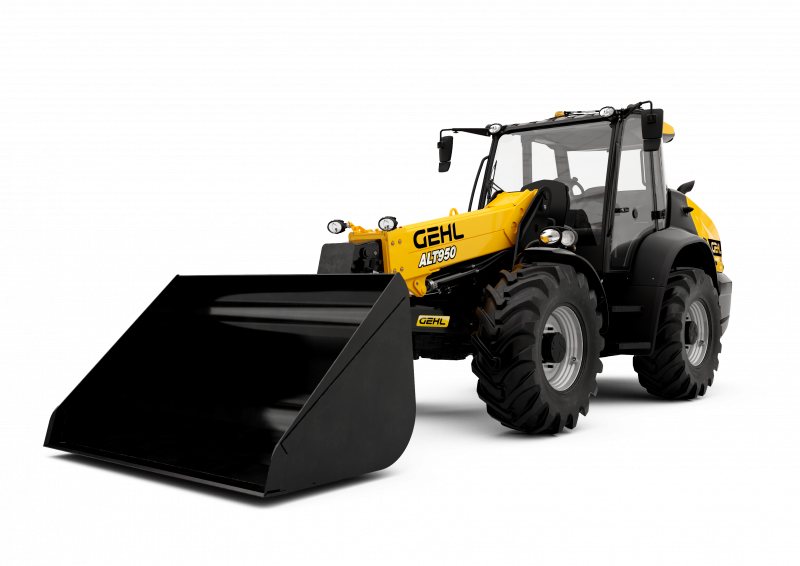

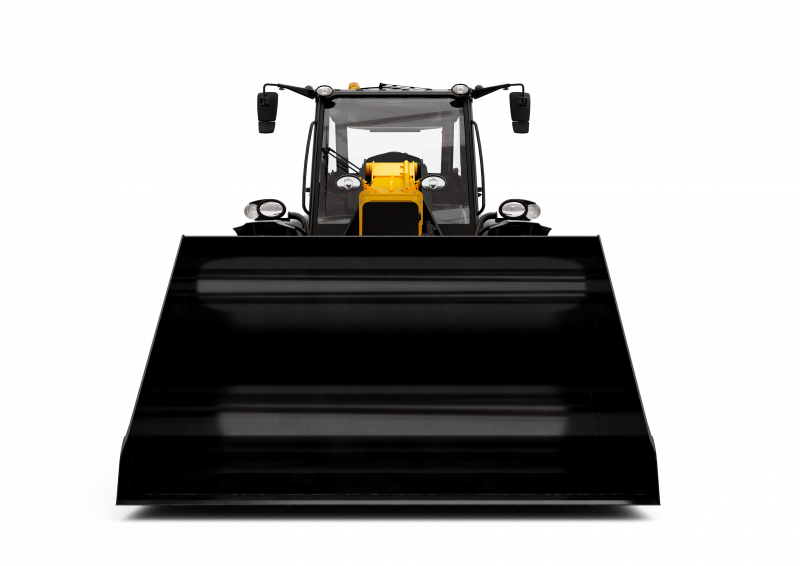

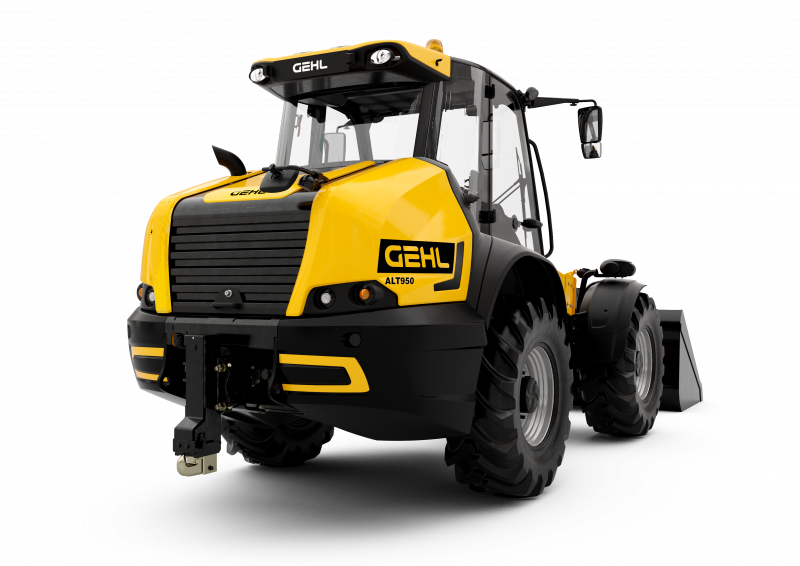

ALT950

Articulated loaders

For jobs on construction or agricultural sites that demand the highest lift and maneuverability offered by an Articulated Loader, the ALT950 gets it done like no other. But don't let the size of this heavy-duty machine intimidate you. Intuitive controls make its telescopic boom easy to use, and a raised seating position delivers both improved safety during operation and unmatched visibility during dirty jobs. Working as hard as you do, the ALT950 represents your chance to reach new heights, get more done, and safely get you home at the end of the day—and maybe even a little early.

See more See less
10975 lb
143 Hp
18 ft 9 in
Learn more about the GEHL warranty

Videos

Close look on this product!
This video presentation from our Gehl experts shows you what makes this product unique!

Want to experience the product? Ask for a demonstration to our dealers to discover the product in real life and discuss how it fits your needs.
Request a demonstration

Gallery

Technical features

Capacities

Static tipping load with forks (straight)

10975 lb

Static tipping load with forks (full turn)

9143 lb

Max. payload with forks as per EN 474-3 (80%)

7275 lb

Max. lifting height (below forks)

17 ft 1 in

Max. outreach

10 ft 10 in

Reach at max. height

3 ft 11 in

Breakout force with bucket

6730 daN

Static tipping load with pallet forks - Straight with cab

10975 lb

Weight and dimensions

Unladen weight (with forks)

18717 lb

Overall length to carriage (with hitch)

18 ft 9 in

Wheelbase

8 ft 2 in

Overall height with cab

8 ft 10 in

Tilt-up angle

9 °

Tilt-down angle

156 °

External turning radius (over tyres)

13 ft 9 in

Articulation angle

44 °

Overall width less bucket

7 ft 6 in

Overall length - Less Bucket

18 ft 9 in

Standard tires

Alliance - A580 - 460/70 R24 159A8

Ground clearance

1 ft 3 in

Performances

Crowd

3.50 s

Dump

2.70 s

Engine

Engine brand

Deutz

Engine model

TCD 4.1 L4

Engine norm

Tier 4

Number of cylinders / Capacity of cylinders

4 - 246 in³

I.C. Engine power rating / Power

143 Hp / 105 kW

Max. torque / Engine rotation

406 ft/lbs / 2300 rpm

Engine cooling system

3 radiators water + intercooler + hydraulic oil

Transmission

Transmission type

M-Varioshift

Max. travel speed (may vary according to applicable regulations)

25 mph

Travel speed (laden)

25 mph

Differential lock

Limited slip differential on front and rear axles

Parking brake

Manual

Hydraulics

Hydraulic pump type

Variable displacement pump

Hydraulic flow - Pressure

42 US gpm / 3916 PSI

Tank capacities

Hydraulic oil

40 US gal

Fuel tank

40 US gal

Diesel Exhaust fluid (AdBlue® type)

3 US gal

Noise and vibration

Noise at driving position (LpA) tested following NF EN 12053 norm

72 dB

Noise to environment (LwA)

107 dB

Vibration to whole hand/arm

< 2.52 m/s²

Miscellaneous

Safety cab homologation

ROPS - FOPS level 2 cab
