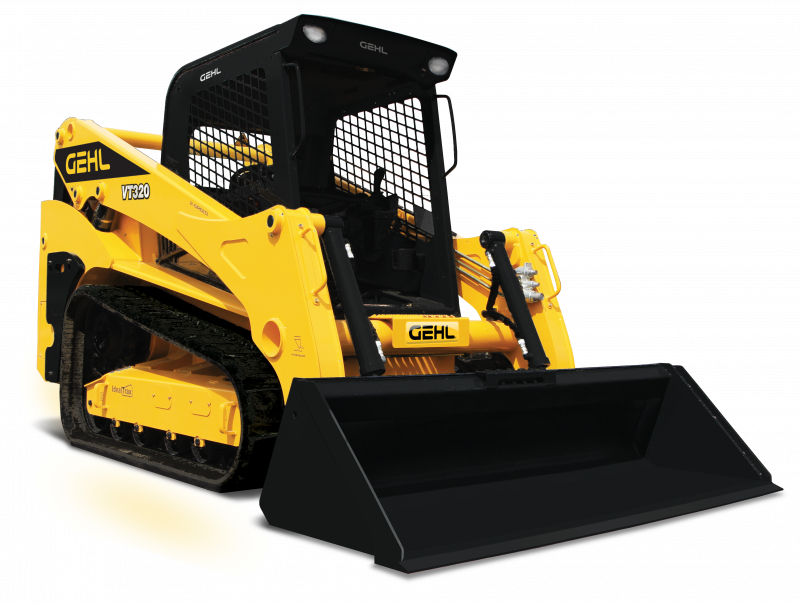

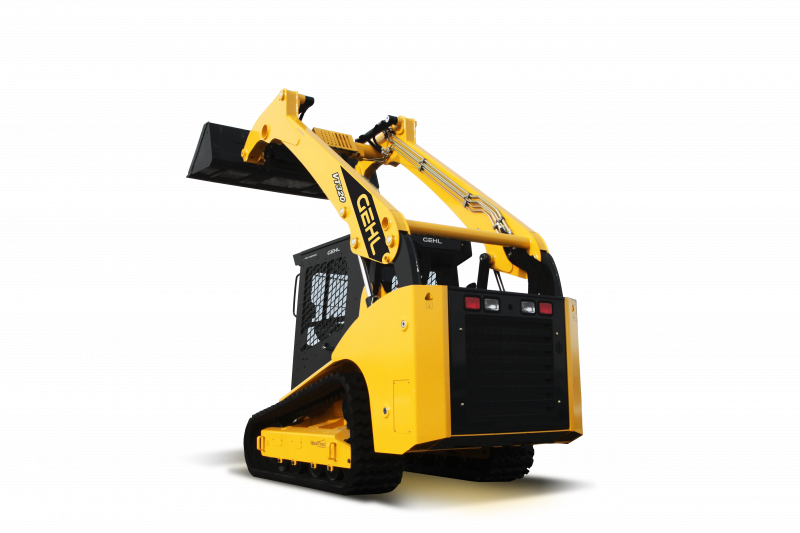

VT320

Compact Loaders

Are you going up against the most difficult challenges on farms and construction sites and need unmatched performance, strength, and durability? Then you need the VT320, our largest vertical lift Track Loader. A machine that’s tougher than any job you can throw at it, the VT320 features an 85 kW engine and 3,200 lbs. of rated operating capacity for powerful lift and torque. That means rough terrain and unpredictable environments won't stop you while you're lifting, loading, and unloading heavy-duty materials from point A to B. Engineered for superior serviceability, productivity, and comfort, this machine gives you the edge over whatever is coming your way on the job site while leaving you prepared for tomorrow. The VT320—it's the pinnacle of Track Loaders.

See more See less
169 in
160 in
70 in
85 kW
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Operating Weight

11799 lb

Operating Capacity at 35% Tipping Load

3201 lb

Operating Capacity At 50% Tipping Load

4572 lb

Tipping capacity

9145 lb

Weight and dimensions

Overall Operating Height - Fully Raised

169 in

Height to Hinge Pin – Fully Raised

130 in

Reach - Fully Raised

40 in

Dump angle at full height

41 °

Dump Height - Fully Raised

100 in

Maximum Rollback Angle - Fully Raised

90.30 °

Overall Height to top of ROPS

83 in

Overall length with bucket

160 in

Overall Length without Bucket

128 in

Specified Height

76 in

Reach at Specified Height

30 in

Maximum Rollback Angle at Ground

31 °

Carry Position

8 in

Maximum Rollback Angle at Carry Position

31 °

Digging Position

0.75 in

Angle of Departure with STD Counterweight

23.50 °

Ground clearance

12 in

Track gauge

52 in

Track Shoe Width

18 in

Crawler base

62 in

Overall width less bucket

70 in

Bucket Width

84 in

Clearance Radius - Front with Bucket

98 in

Clearance Circle - Rear

74 in

Track Type / Roller Type

Rubber / Steel

Performances

Ground Speed - Single Speed

5 mph

Drawbar Pull/Tractive Effort

12769 lb

Bucket Breakout - Tilt Cylinder

9903 lb

Bucket Breakout - Lift Cylinder

7491 lb

Engine

Engine brand

Deutz

Engine model

TD 3.6 EPA

Motor Type

Axial Piston with planetary gear box reduction

Gross Power / Power

85 kW @ 2300 rpm

I.C. Engine power rating

114 Hp

Battery voltage

12 V

Cold Cranking Amps at Temperature (CCA)

1600 A

Alternator - Voltage / Ampere

14 V / 120 A

Hydraulics

Standard flow - Auxiliary hydraulics

29 US gpm

High-Flow Auxiliary Hydraulics – Option

38 US gpm

Tank capacities

Hydraulic tank capacity

10 US gal

Fuel tank

32 US gal

Displacement / Number of cylinders

0.95 US gal / 4
