Articulated loaders

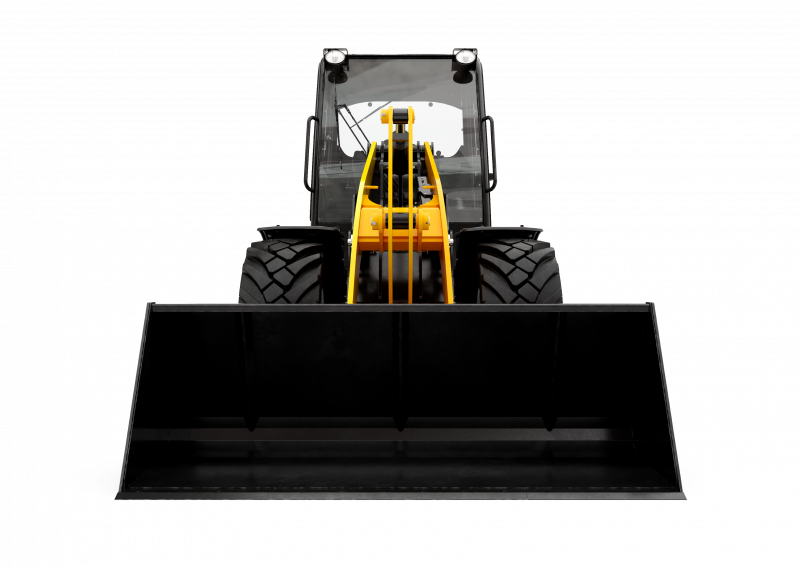

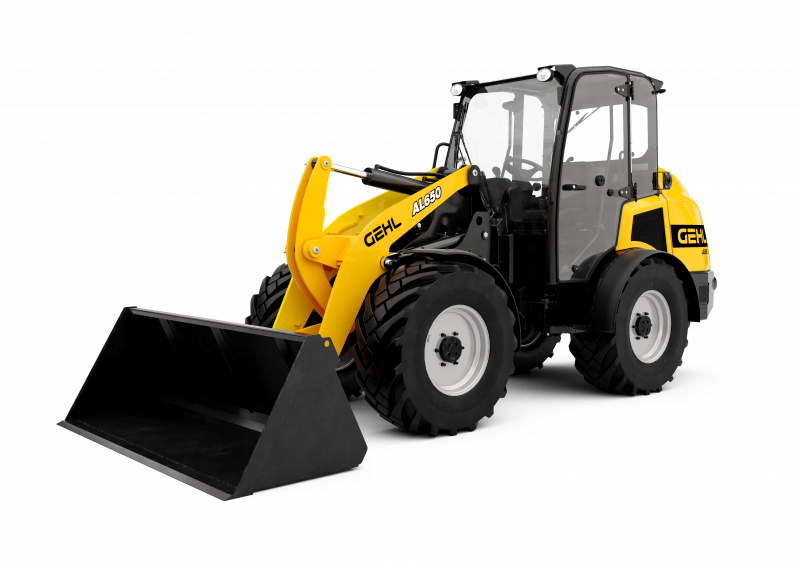

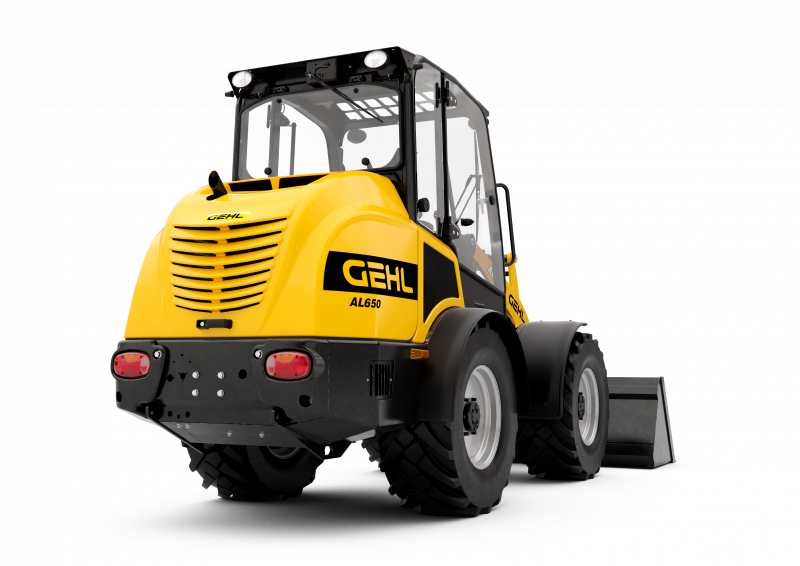

AL650

Articulated loaders

Built to deliver a new level of productivity in the most demanding environments, the AL650 combines compact dimensions with raw power—giving you the ability to slip in and out of tight spaces without compromising on lift strength. With full 360° visibility, an adjustable workspace, and ergonomic controls centralized around an intuitive joystick, the AL650 ensures you'll get the job done in comfort all day long. When hard work comes calling, answer with a machine that's as capable, strong, and committed as you.

See more See less
10 ft 11 in
64.40 Hp
8 ft 1 in
14 ft
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Max. height of bucket pivot point

10 ft 11 in

Max. lifting height (below forks)

10 ft 3 in

Breakout force with bucket

5743 daN

Static tipping load with bucket - Straight with cab

6744 lb

Static tipping load with bucket - Full turn with 4-post canopy

4916 lb

Static tipping load with bucket - Full turn with cab

5245 lb

Static tipping load with pallet forks - Straight with cab

5302 lb

Static tipping load with pallet forks - Straight with 4-post canopy

4980 lb

Static tipping load with pallet forks - Full turn with 4-post canopy

3920 lb

Static tipping load with bucket - Straight with 4-post canopy

6409 lb

Weight and dimensions

Unladen weight (with forks) with 4-post canopy

9149 lb

Unladen weight (with forks)

9500 lb

Wheelbase

79 in

Overall width of 4 posts canopy

4 ft 6 in

Overall cab width

4 ft 6 in

Overall height with 4 posts canopy

8 ft 1 in

Overall height with cab

8 ft 1 in

Tilt-up angle

45 °

Tilt-down angle

45 °

External turning radius (over tyres)

10 ft 10 in

Articulation angle

45 °

Overall width less bucket

5 ft 5 in

Overall length - Less Bucket

14 ft

Ground clearance

1 ft 3 in

Engine

Engine brand

Yanmar

Engine model

4TNV98CT

Engine norm

Tier 4 final

Number of cylinders / Capacity of cylinders

4 - 201 in³

I.C. Engine power rating / Power

64.40 Hp / 48 kW

Max. torque / Engine rotation

207 ft/lbs / 2300 rpm

Engine cooling system

2 radiators water + hydraulic oil

Transmission

Transmission type

Hydrostatic

Number of gears (forward / reverse)

2 / 2

Max. travel speed (may vary according to applicable regulations)

19 mph

Travel speed (laden)

19 mph

Differential lock

Front and rear locking of the machine

Parking brake

Manual

Hydraulics

Hydraulic pump type

Gear pump

Hydraulic flow - Pressure

18 US gpm / 2901 PSI

High-Flow Option (l/min)

26 US gpm

Drive hydraulic system pressure

6092 PSI

Tank capacities

Hydraulic oil

19 US gal

Fuel tank

25 US gal

Noise and vibration

Vibration to whole hand/arm

< 2.50 m/s²

Miscellaneous

Safety cab homologation

ROPS - FOPS level 1 cab
