Compact Loaders

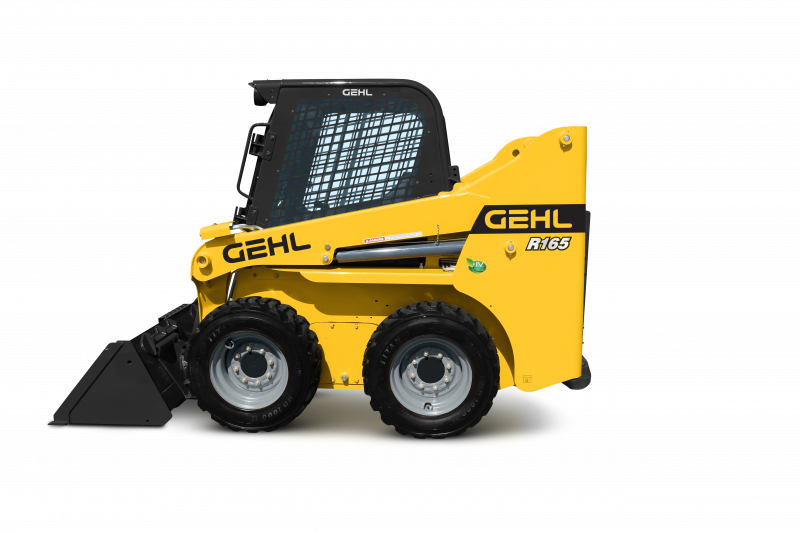

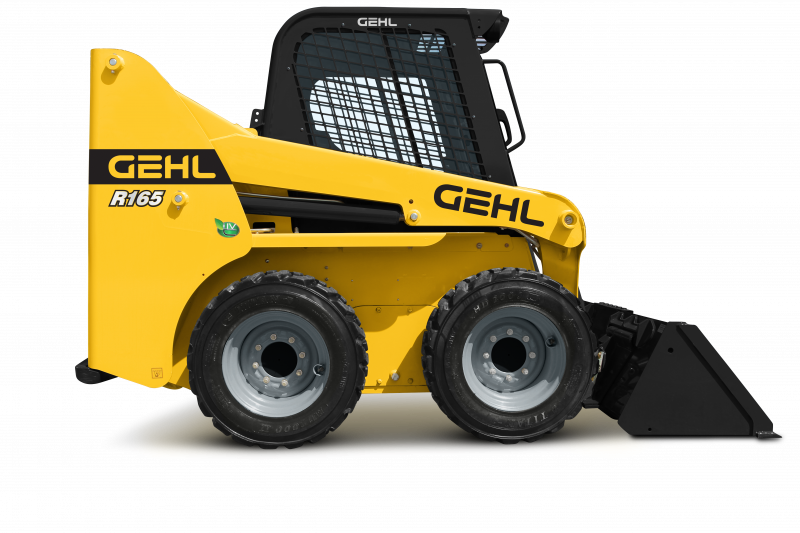

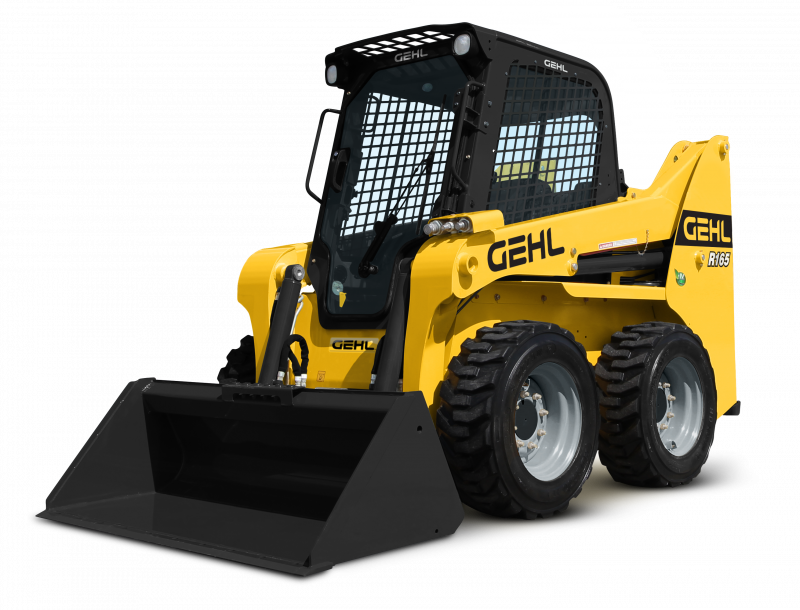

R165

Compact Loaders

When it's time to get a high-performance and versatile solution for your agricultural / construction operations choose the R165. A true crowd favorite. Compact body style with true raw power. This latest generation machine with perfect all-terrain maneuverability is ideal for your most demanding applications in confined spaces and on uneven ground. Combining driving comfort, precision of movement, multifunction use (thanks to endless attachments available below).

See more See less
1649 lb
153 in
23 in
122 in
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Rated Operating Capacity

1649 lb

Rated Operating Capacity with Optional Counterweight

1800 lb

Unladen weight

6164 lb

Weight and dimensions

Overall Operating Height - Fully Raised

153 in

Height to Hinge Pin – Fully Raised

118 in

Overall Height to Top of ROPS

77 in

Dump angle at full height

38 °

Dump height

94 in

Overall length with bucket

122 in

Dump reach - Full height

23 in

Rollback at ground

28 °

Seat to ground height

36 in

Wheelbase

39 in

Overall width less bucket

62 in

Bucket Width

61 in

Ground clearance

524 ft 11 in

Overall length - Less Bucket

94 in

Departure angle

21 °

Clearance Radius - Front with Bucket

74 in

Clearance Circle - Front without Bucket

45 in

Clearance Circle - Rear

58 in

Performances

Travel Speed with Two-Speed Option - Maximum

12 mi/h

Travel speed (unladen)

8 mi/h

Wheels

Standard tyres

10.00x16.5 HD

Engine

Engine brand

Yanmar

Engine model

4TNV98C-NMS2V

Engine norm

Stage V

Gross Power (kW)

51.70 kW

Net Power (kW)

51 kW

Max. torque / Engine rotation

241 Nm / 1625 rpm

Battery

12 V

Starter (kW)

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

77 l/min

High-Flow Auxiliary Hydraulics – Option

114 l/min

Tank capacities

Fuel tank

17 US gal

Reservoir Capacity Hydraulics

10 US gal

Displacement

0.87 US gal

Noise and vibration

Environmental noise (LwA)

101 dB

Whole-Body Vibration (ISO 2631-1)

1.05 m/s²

Vibration to whole hand/arm

< 1.53 m/s²
