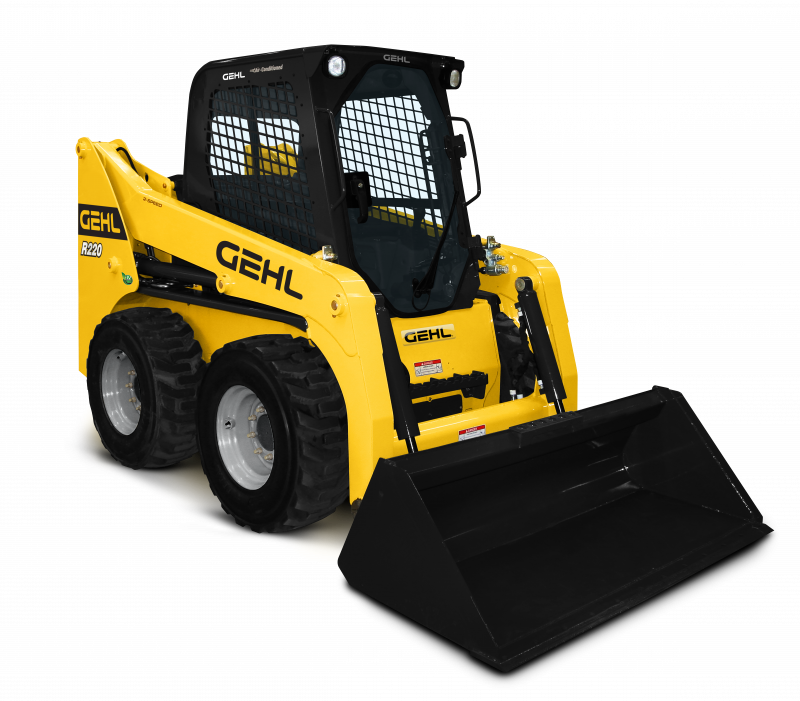

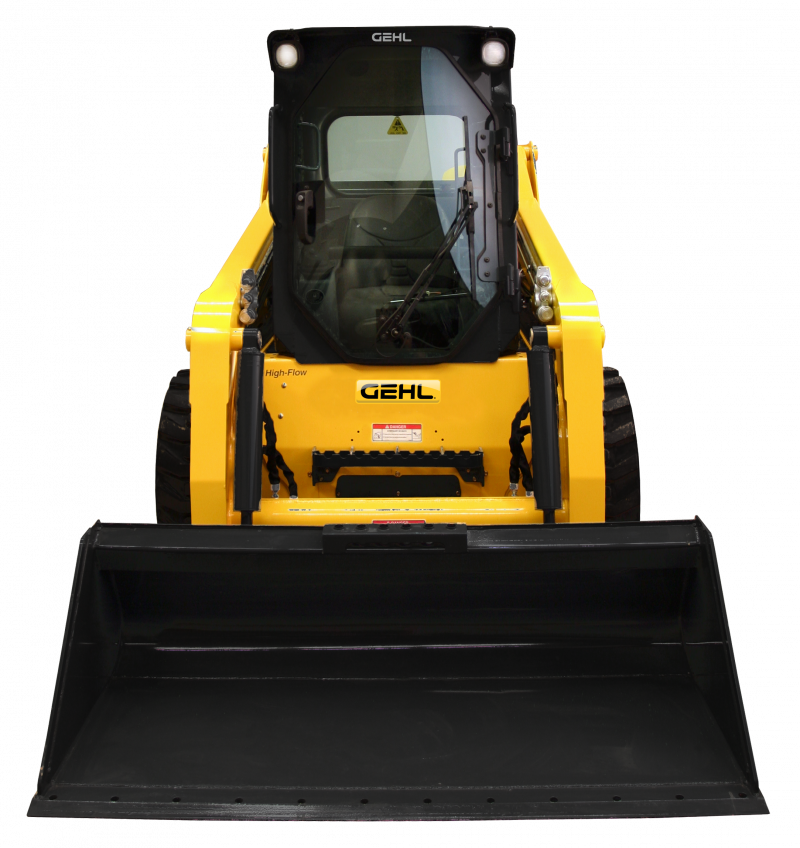

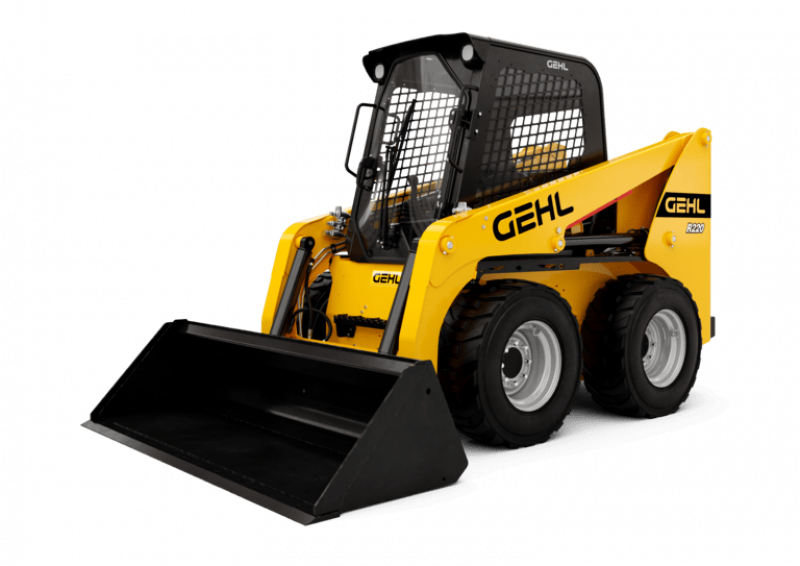

R220

Compact Loaders

Optimize your operations with the R220. This medium-frame skid loader was born at the intersection of dimensions and performance. The ideal construction machine that will handle any job with ease. We thought about calling it simple, intuitive and strong but it didn't pass our Marketing Director's approval. The R220, need we say more? If so, visit your local dealer and they'll show you around this beast. Simple to service and works like you.

See more See less
2200 lb
161 in
27 in
136 in
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Rated Operating Capacity

2200 lb

Rated Operating Capacity with Optional Counterweight

2370 lb

Unladen weight

7981 lb

Weight and dimensions

Overall Operating Height - Fully Raised

161 in

Height to Hinge Pin – Fully Raised

123 in

Overall Height to top of ROPS

81 in

Dump angle at full height

40 °

Dump height

94 in

Overall length with bucket

136 in

Dump reach - Full height

27 in

Rollback at ground

28 °

Seat to ground height

40 in

Wheelbase

43 in

Overall width less bucket

67 in

Bucket Width

67 in

Ground clearance

8 in

Overall length - Less Bucket

105 in

Clearance Radius - Front with Bucket

88 in

Clearance Circle - Front without Bucket

52 in

Clearance Circle - Rear

60 in

Performances

Travel Speed with Two-Speed Option - Maximum

12 mph

Travel speed (unladen)

8 mph

Wheels

Standard tires

12.00x16.5 HD

Engine

Engine brand

Yanmar

Engine model

4TNV98CT-NMSLV

Engine norm

Stage V

Gross Power

53.70 kW

Net Power

52.70 kW

Max. torque / Engine rotation

217 ft/lbs / 1625 rpm

Power source

Diesel

I.C. Engine power rating

53.70 Hp

Battery voltage

12 V

Starter

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

24 US gpm

High-Flow Auxiliary Hydraulics – Option

35 US gpm

Tank capacities

Fuel tank

18 US gal

Reservoir Capacity Hydraulics

8 US gal

Displacement

0.87 US gal

Noise and vibration

Noise to environment (LwA)

101 dB

Whole-Body Vibration (ISO 2631-1)

0.96 m/s²

Vibration to whole hand/arm

< 1.50 m/s²
