Compact Loaders

R260

Compact Loaders

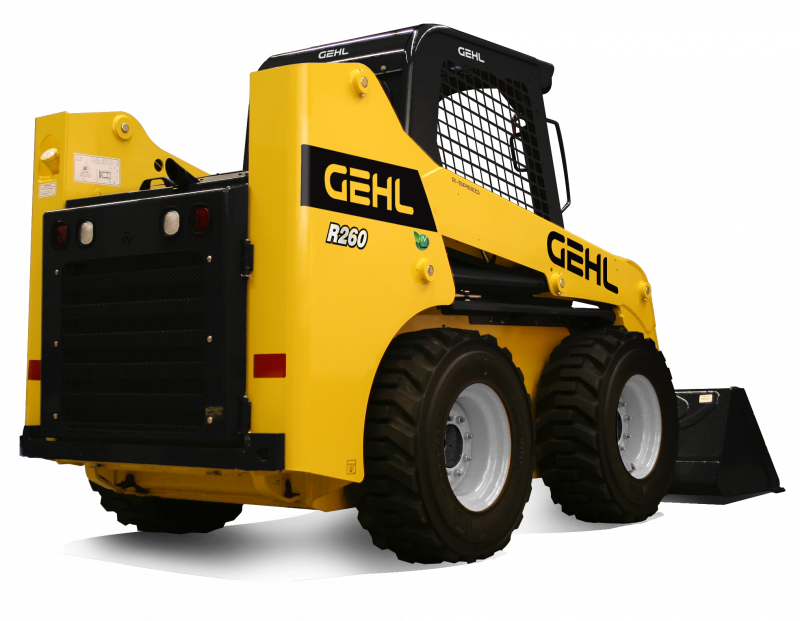

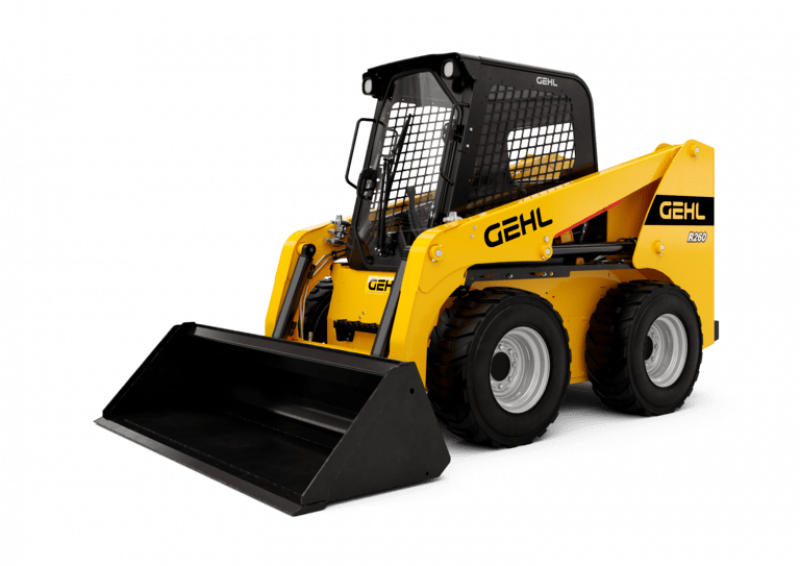

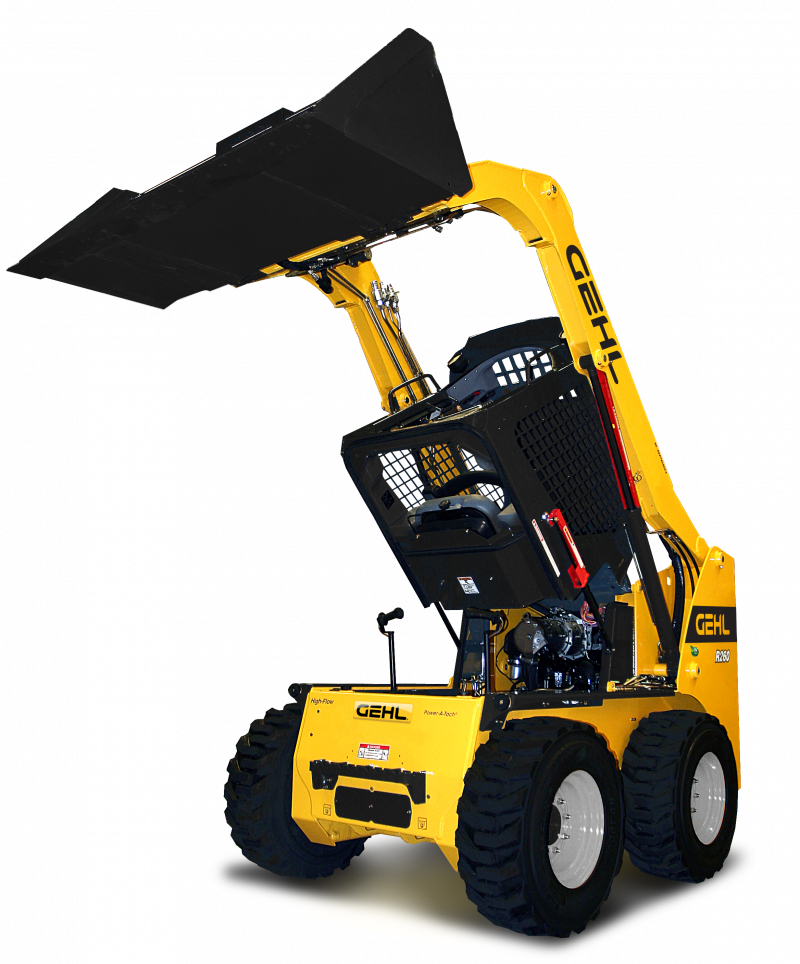

The R260 is largest radial lift skid loader in GEHL's offering, and it doesn't disappoint. With 1,179 kg. of rated operating capacity, it would be hard to find an application tougher than this machine. Various control options give owners the ability to select what is most comfortable to them, making them even more productive throughout a long day.

See more See less
2599 lb
161 in
27 in
143 in
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Rated Operating Capacity

2599 lb

Rated Operating Capacity with Optional Counterweight

2780 lb

Unladen weight

8199 lb

Weight and dimensions

Overall Operating Height - Fully Raised

161 in

Height to Hinge Pin – Fully Raised

123 in

Overall Height to top of ROPS

81 in

Dump angle at full height

40 °

Dump height

94 in

Overall length with bucket

143 in

Dump reach - Full height

27 in

Rollback at ground

28 °

Seat to ground height

40 in

Wheelbase

49 in

Overall width less bucket

67 in

Bucket Width

67 in

Ground clearance

8 in

Overall length - Less Bucket

111 in

Clearance Radius - Front with Bucket

90 in

Clearance Circle - Front without Bucket

56 in

Clearance Circle - Rear

64 in

Performances

Travel Speed with Two-Speed Option - Maximum

12 mph

Travel speed (unladen)

8 mph

Wheels

Standard tires

12.00x16.5 HD

Engine

Engine brand

Yanmar

Engine model

4TNV98CT-NMSLV

Engine norm

Stage V

Gross Power

53.70 kW

Net Power

52.70 kW

Max. torque / Engine rotation

217 ft/lbs / 1625 rpm

Power source

Diesel

I.C. Engine power rating

53.70 Hp

Battery voltage

12 V

Starter

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

24 US gpm

High-Flow Auxiliary Hydraulics – Option

35 US gpm

Tank capacities

Fuel tank

22 US gal

Reservoir Capacity Hydraulics

8 US gal

Displacement

0.87 US gal

Noise and vibration

Noise to environment (LwA)

101 dB

Whole-Body Vibration (ISO 2631-1)

0.96 m/s²

Vibration to whole hand/arm

< 1.50 m/s²
