Compact Loaders

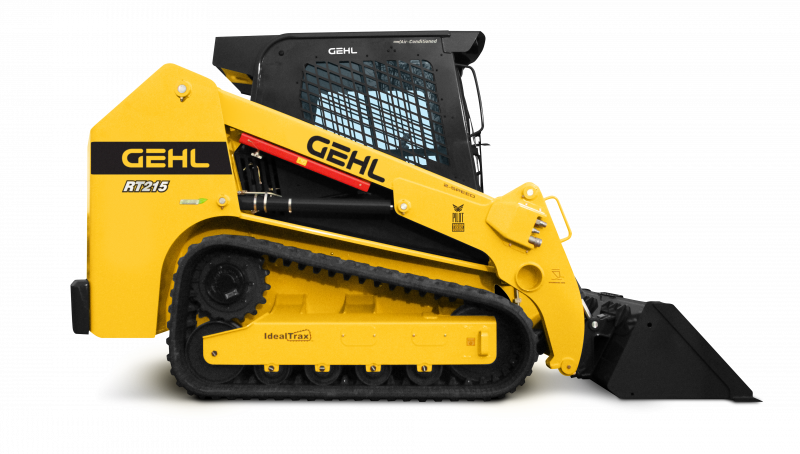

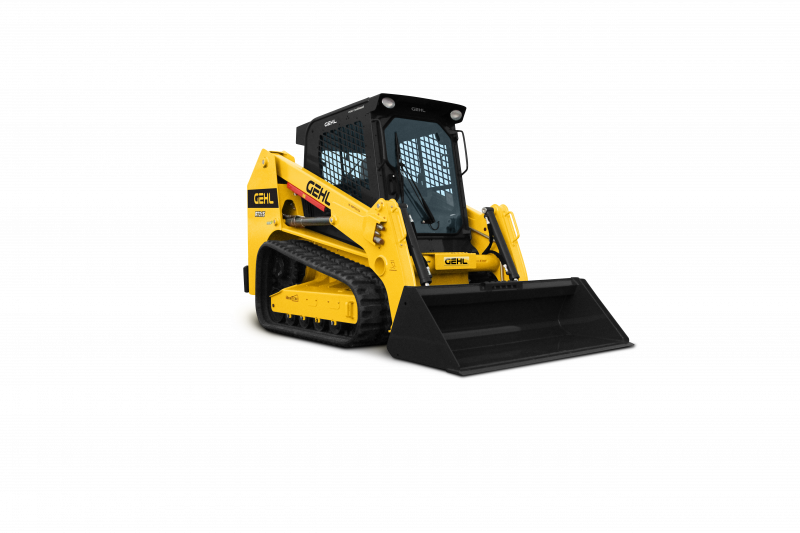

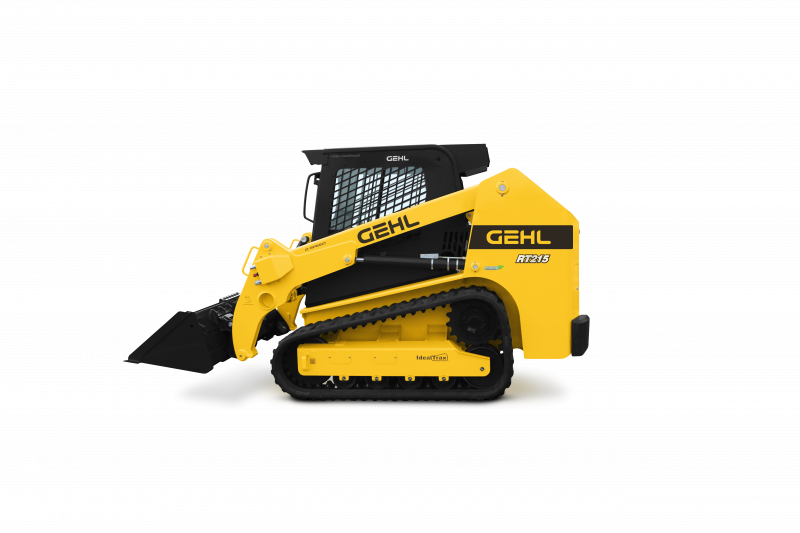

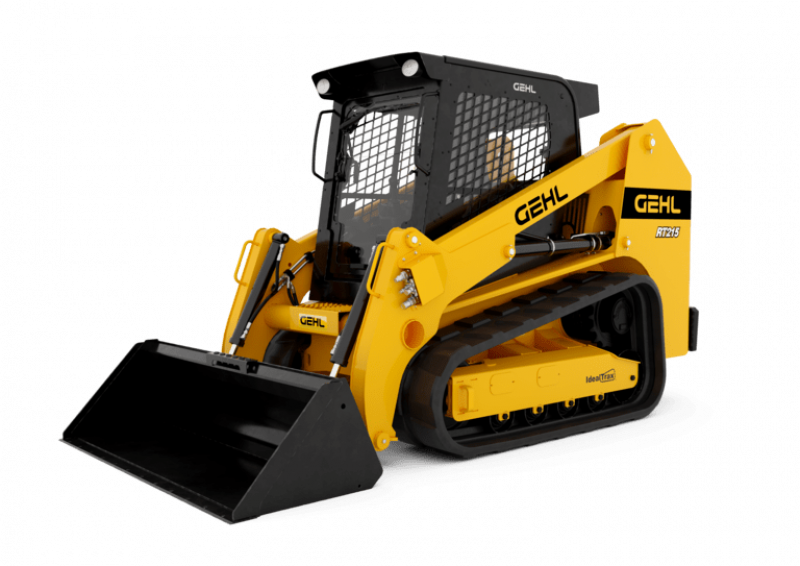

RT215

Compact Loaders

When time is money (which it always is), optimize your operations with the RT215 track loader. This track loader comes standard with pilot joysticks and is ideal for working with precision. This perfect multi-application machine will handle any heavy job with ease. The RT215 has one of our highest customer satisfaction ratings in our range. Visit your local dealer and they'll show you around your new co-worker. Simple to service and works like you.

See more See less
168 in
148 in
69 in
53.70 kW
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Operating Weight

9899 lb

Operating Capacity at 35% Tipping Load

2150 lb

Operating Capacity At 50% Tipping Load

3071 lb

Tipping capacity

6144 lb

Weight and dimensions

Overall Operating Height - Fully Raised

168 in

Height to Hinge Pin – Fully Raised

128 in

Reach - Fully Raised

34 in

Dump angle at full height

39 °

Dump Height - Fully Raised

98 in

Maximum Rollback Angle - Fully Raised

102.50 °

Overall Height to top of ROPS

83 in

Overall length with bucket

148 in

Overall Length without Bucket

116 in

Specified Height

68 in

Reach at Specified Height

31 in

Dump angle at specified height

75 °

Maximum Rollback Angle at Ground

30 °

Carry Position

8 in

Maximum Rollback Angle at Carry Position

31.60 °

Digging Position

0.63 in

Angle of Departure with STD Counterweight

29.20 °

Ground clearance

13 in

Track gauge

52 in

Track Shoe Width

18 in

Crawler base

58 in

Overall width less bucket

69 in

Bucket Width

74 in

Clearance Radius - Front with Bucket

95 in

Clearance Circle - Rear

65 in

Track Type / Track Rollers / Roller Type

Rubber / 5 / Steel

Performances

Ground Speed - Single Speed

6 mph

Drawbar Pull/Tractive Effort

12132 lb

Bucket Breakout - Tilt Cylinder

6632 lb

Bucket Breakout - Lift Cylinder

6482 lb

Engine

Engine brand

Yanmar

Engine model

4TNV98CT-XNMSLV

Motor Type

Axial Piston with planetary gear box reduction

Gross Power / Power

53.70 kW @ 2500 rpm

Battery voltage

12 V

Cold Cranking Amps at Temperature (CCA)

850 A

Alternator - Voltage / Ampere

14 V / 100 A

Hydraulics

Standard flow - Auxiliary hydraulics

22 US gpm

Tank capacities

Hydraulic tank capacity

14 US gal

Fuel tank

24 US gal

Displacement / Number of cylinders

0.87 US gal / 4
