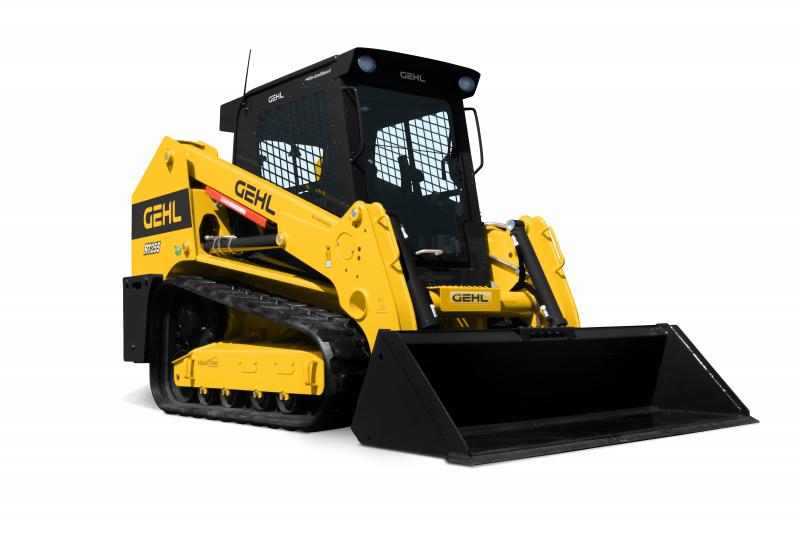

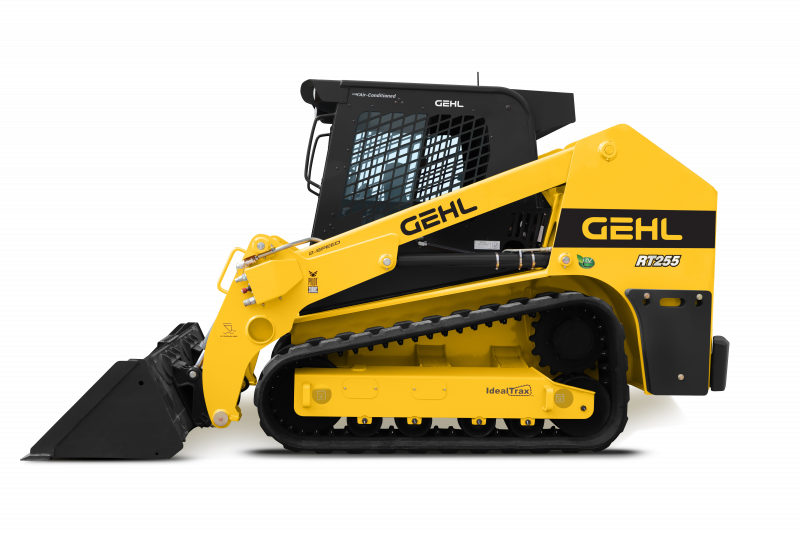

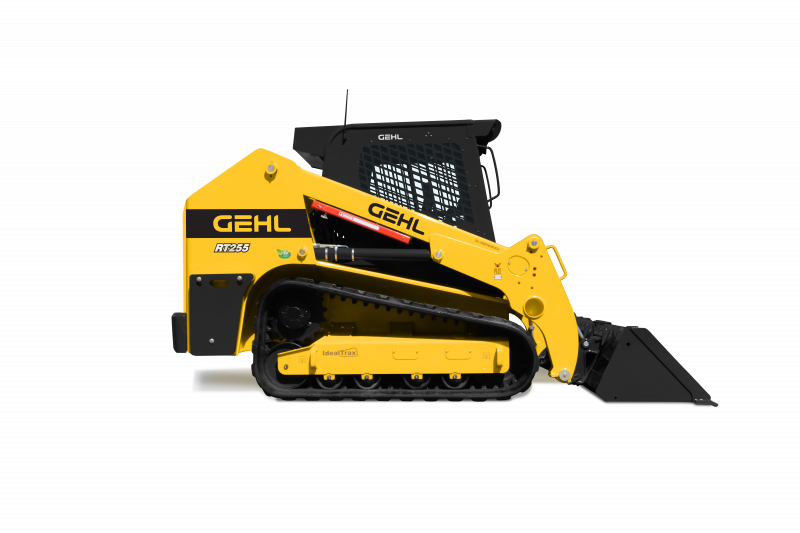

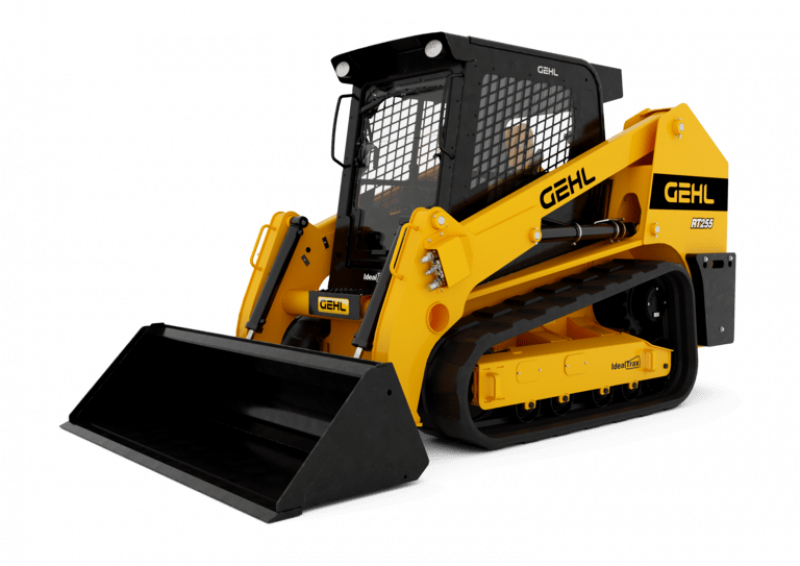

RT255

Compact Loaders

Level the playing field on uneven ground. Take advantage of the improved performance of the GEHL RT255 track loader to increase your productivity. A standard feature for all of our track loaders is IdealTrax, an automatic track tensioning system that reduces maintenance, increases track life and saves you money. Tree removal, snow management, trenching or even excavating are all possible with the high flow hydraulics of the RT255. This unit comes standard with HydraGlide ride control, making for smoother travels when carrying a load.

See more See less
168 in
158 in
69 in
55.40 kW
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Operating Weight

11596 lb

Operating Capacity at 35% Tipping Load

2551 lb

Operating Capacity At 50% Tipping Load

3642 lb

Tipping capacity

7286 lb

Weight and dimensions

Overall Operating Height - Fully Raised

168 in

Height to Hinge Pin – Fully Raised

128 in

Reach - Fully Raised

34 in

Dump angle at full height

41 °

Dump Height - Fully Raised

98 in

Maximum Rollback Angle - Fully Raised

102.50 °

Overall Height to top of ROPS

83 in

Overall length with bucket

158 in

Overall Length without Bucket

127 in

Specified Height

68 in

Reach at Specified Height

31 in

Maximum Rollback Angle at Ground

30 °

Carry Position

8 in

Maximum Rollback Angle at Carry Position

31.60 °

Digging Position

0.51 in

Angle of Departure with STD Counterweight

25 °

Ground clearance

12 in

Track gauge

52 in

Track Shoe Width

18 in

Crawler base

61 in

Overall width less bucket

69 in

Bucket Width

84 in

Clearance Radius - Front with Bucket

98 in

Clearance Circle - Rear

71 in

Track Type / Track Rollers / Roller Type

Rubber / 5 / Steel

Performances

Ground Speed - Single Speed

5 mi/h

Drawbar Pull/Tractive Effort

12454 lb

Bucket Breakout - Tilt Cylinder

8384 lb

Bucket Breakout - Lift Cylinder

7436 lb

Engine

Engine brand

Deutz

Engine model

TD 3.6 L4 Tier IV

Motor Type

Axial Piston with planetary gear box reduction

Gross Power (kW) / Power

55.40 kW @ 2300 rpm

Battery voltage

12 V

Cold Cranking Amps at Temperature (CCA)

950 A

Alternator - Voltage / Ampere

12 V / 120 A

Hydraulics

Standard flow - Auxiliary hydraulics

29 US gpm

Tank capacities

Hydraulic tank capacity

14 US gal

Fuel tank

32 US gal

Displacement / Number of cylinders

0.96 US gal / 4
