Compact Loaders

V210 - NEW

Compact Loaders

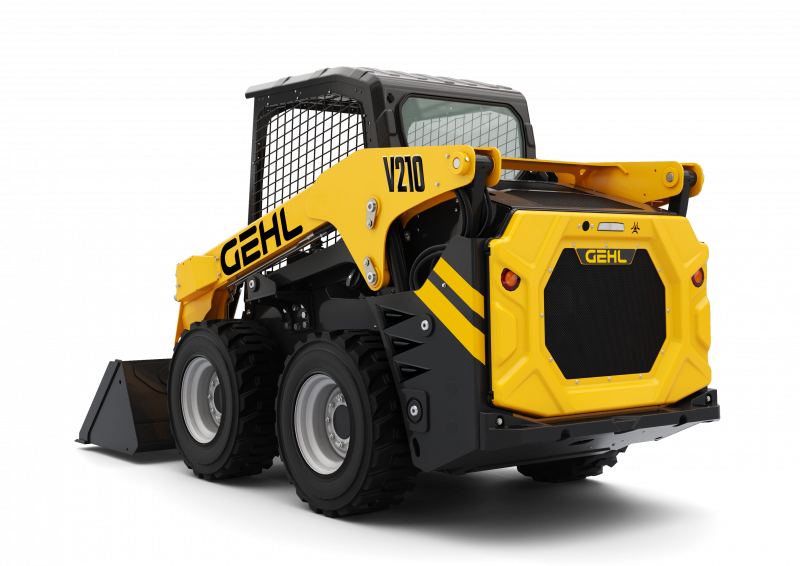

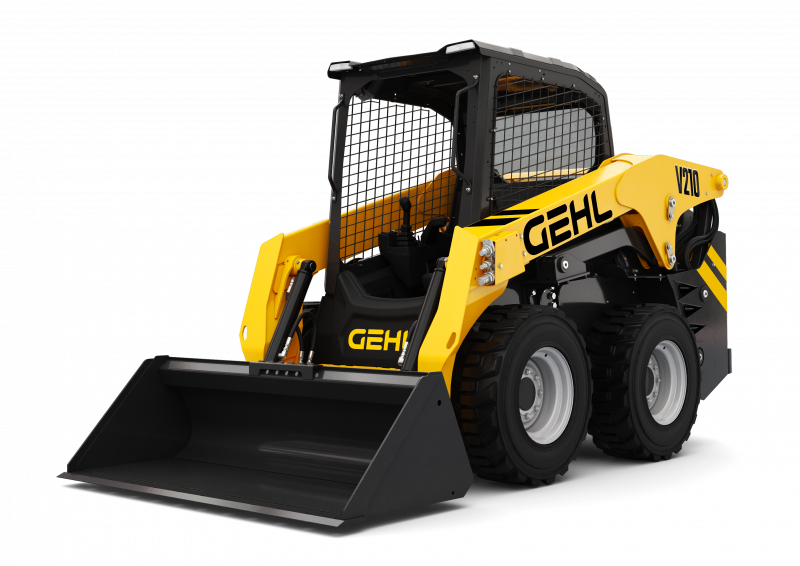

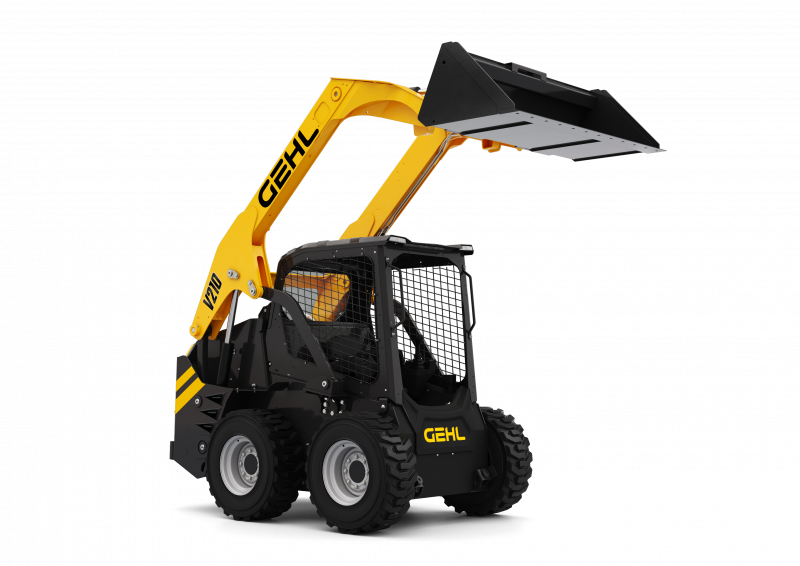

Does your daily grind involve uneven terrain, demanding conditions, and unpredictable weather? Look no further than the mid-sized V210, a vertical lift Skid Loader that's built to keep moving through thick and thin. Balancing power and maneuverability in a single machine, this durable and capable Skid Loader boasts 2,100 lbs. of rated operating capacity—add an optional counterweight to lift even more. Its small frame and highly durable treads make space-constrained worksites a breeze to navigate, keeping you working and focused on the task at hand. This sturdy, multi-purpose machine tackles daily tasks with ease and ensures you're ready to adapt to whatever challenges come your way.

See more See less
158 in
34 in
139 in
64 in
Learn more about the GEHL warranty

Gallery

Technical features

Capacities

Operating Capacity At 50% Tipping Load

2100 lb

Operating Weight

7480 lb

Unladen weight

6713 lb

Tipping capacity

4200 lb

Weight and dimensions

Operating Weight - Approximate

7480 lb

Overall Operating Height - Fully Raised

158 in

Height to Hinge Pin – Fully Raised

121 in

Overall Height to top of ROPS

80 in

Dump angle at full height

42 °

Dump height

90 in

Overall length with bucket

139 in

Dump reach - Full height

34 in

Rollback Angle at Full Height

92 °

Seat to ground height

37 in

Overall width less bucket

64 in

Ground clearance

7 in

Overall length - Less Bucket

108 in

Clearance Radius - Front with Bucket

84 in

Clearance Circle - Rear

66 in

Performances

Travel Speed with Two-Speed Option - Maximum

12 mph

Travel speed (unladen)

8 mph

Engine

Engine brand

Yanmar

Engine model

4TNV98C-NGL

Engine norm

Stage V, Tier 4

Gross Power

52.70 kW

Net Power

51.70 kW

Max. torque / Engine rotation

178 ft/lbs / 1625 rpm

Power source

Diesel

Number of cylinders

4

Engine cooling system

Water

Battery voltage

12 V

Alternator - Ampere

100 A

Starter

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

23 US gpm

Auxiliary Hydraulic Pressure

3475 PSI

High-Flow Auxiliary Hydraulics – Option

30 US gpm

High-Flow Auxiliary Hydraulics Pressure – Option

3325 PSI

Tank capacities

Fuel tank

28 US gal

Reservoir Capacity Hydraulics

6 US gal

Displacement

0.87 US gal
