Compact Loaders

V270

Compact Loaders

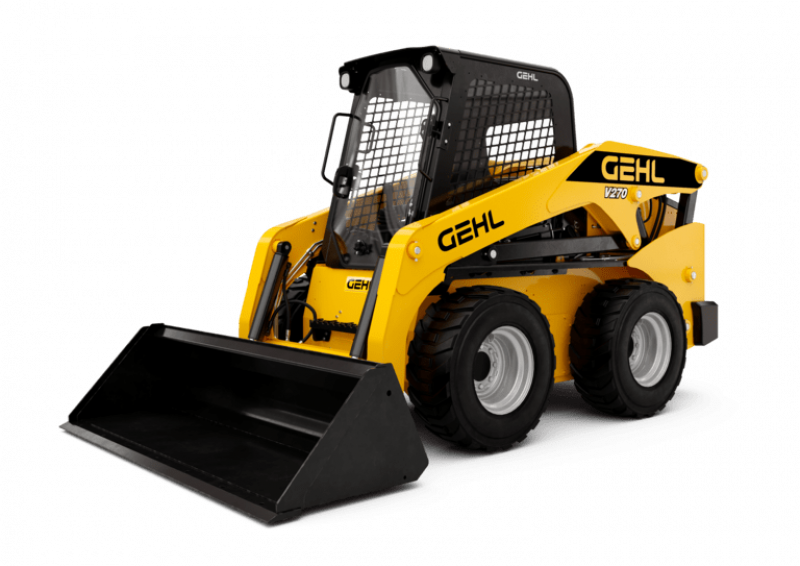

Our smallest vertical lift skid loader, the GEHL V270 offers high visibility, intuitive controls, precise movement and an ergonomic operator station. Take advantage of all its performance to facilitate your daily handling operations. Earth-moving to feed-moving this machine is built to assist you in whatever you (or your buddy) has on their project list. DIY to LLC this machine will not let you down.

See more See less
2767 lbs
167.402 in
32.008 in
147.992 in
Learn more about the GEHL warranty

Gallery

Technical features

General Information

New

No

Compact loader type

Skid Steer Loaders

Product Name

V270

Radial lift or Vertical lift

Vertical Lift

Main Visual

/api/media/b/9/3/e/b93e96acc984b9b8bc7fab77f37129eeb14e0e1d_270V_AVGFB.png

Description

Our smallest vertical lift skid loader, the GEHL V270 offers high visibility, intuitive controls, precise movement and an ergonomic operator station. Take advantage of all its performance to facilitate your daily handling operations. Earth-moving to feed-moving this machine is built to assist you in whatever you (or your buddy) has on their project list. DIY to LLC this machine will not let you down.

Brand

GEHL

Markets

Agriculture, Construction

Assortiments

Region

R1

Country excluded from the region

Turkey

Technical characteristics

Wheelbase

4 ft 1.48 in

Capacities

Rated Operating Capacity

2766.80 lbs

Rated Operating Capacity with Optional Counterweight

3000.49 lbs

Fuel tank

24.48 US gal

Displacement

0.87 US gal

Weight and dimensions

Rear departure angle

25 °

Overall Operating Height - Fully Raised

13 ft 11.40 in

Overall Height to Top of ROPS

6 ft 8.98 in

Overall length with bucket

12 ft 3.99 in

Dump height

8 ft 4 in

Dump reach at full height

2 ft 8 in

Seat to ground height

3 ft 4 in

Overall width less bucket

5 ft 7.40 in

Overall length - Less Bucket

9 ft 8.49 in

Clearance Circle - Rear

5 ft 6.49 in

Clearance Radius - Front with Bucket

7 ft 6 in

Height to Hinge Pin – Fully Raised

4 ft 7.98 in

Bucket Width

5 ft 10 in

Clearance Circle - Front with Bucket

7 ft 6 in

Clearance Circle - Front without Bucket

4 ft 7.98 in

Dump angle at full height

42 °

Unladen weight

8150.48 lbs

Ground clearance

7.99 in

Standard tyres

12.00x16.5 HD

Performances

Travel Speed with Two-Speed Option - Maximum

11.93 mph

Travel speed (unladen)

7.39 mph

Engine

Engine model

4TNV98C-NMSLV Stage V

Max. torque / Engine rotation

294.20 Nm at 2500 rpm

Starter (kW)

3 kW

Gross Power (kW)

53.70 kW

Engine brand / norm

Yanmar / Stage V

Net Power (kW)

52.70 kW

Battery

12 V

Hydraulics

Reservoir Capacity Hydraulics

10.56 US gal

High-Flow Auxiliary Hydraulics – Option

132 l/min

Standard flow - Auxiliary hydraulics

89 l/min

Noise and vibration

Environmental noise (LwA)

101 dB(A)

Whole-Body Vibration (ISO 2631-1)

1.07 m/s²

Vibration to whole hand/arm

1.50 m/s²

Pictures

Applications

/view/assets/GEHL_V270_CON_dirt_1,/view/assets/GEHL_V270_CON_dirt_10,/view/assets/GEHL_V270_CON_dirt_2,/view/assets/GEHL_V270_CON_dirt_3,/view/assets/GEHL_V270_CON_dirt_4,/view/assets/GEHL_V270_CON_dirt_5,/view/assets/GEHL_V270_CON_dirt_6,/view/assets/GEHL_V270_CON_dirt_7,/view/assets/GEHL_V270_CON_dirt_8,/view/assets/GEHL_V270_CON_dirt_9,/view/assets/GEHL_V270_CON_empty_1,/view/assets/GEHL_V270_CON_empty_2,/view/assets/GEHL_V270_CON_empty_3,/view/assets/GEHL_V270_CON_empty_4,/view/assets/GEHL_V270_CON_gravel_1,/view/assets/GEHL_V270_CON_gravel_10,/view/assets/GEHL_V270_CON_gravel_11,/view/assets/GEHL_V270_CON_gravel_12,/view/assets/GEHL_V270_CON_gravel_13,/view/assets/GEHL_V270_CON_gravel_14,/view/assets/GEHL_V270_CON_gravel_15,/view/assets/GEHL_V270_CON_gravel_16,/view/assets/GEHL_V270_CON_gravel_17,/view/assets/GEHL_V270_CON_gravel_18,/view/assets/GEHL_V270_CON_gravel_19,/view/assets/GEHL_V270_CON_gravel_2,/view/assets/GEHL_V270_CON_gravel_3,/view/assets/GEHL_V270_CON_gravel_4,/view/assets/GEHL_V270_CON_gravel_5,/view/assets/GEHL_V270_CON_gravel_6,/view/assets/GEHL_V270_CON_gravel_7,/view/assets/GEHL_V270_CON_gravel_8,/view/assets/GEHL_V270_CON_gravel_9,/view/assets/GEHL_V270_CON_parked_1,/view/assets/GEHL_V270_CON_parked_2,/view/assets/GEHL_V270_CON_parked_3

Performance loader

Rollback at ground

29 °

Best-Seller

This machine has a one or more Best-Seller versions

No
