Compact Loaders

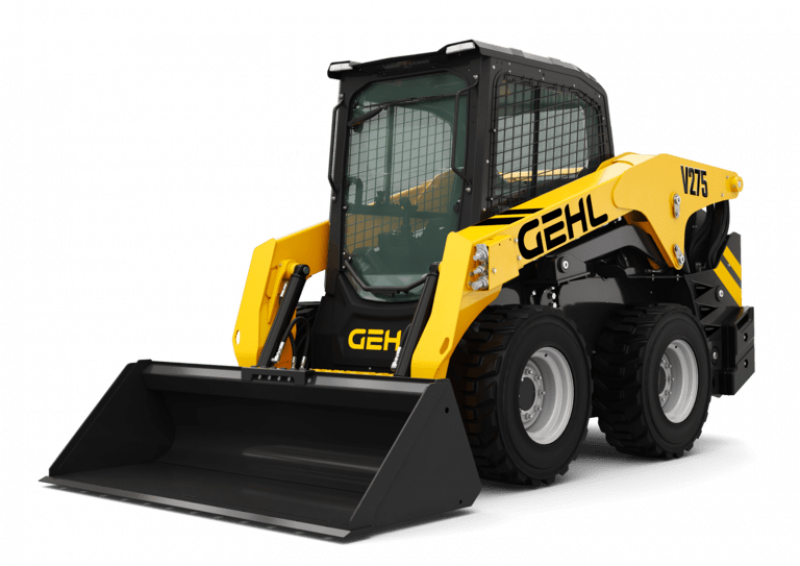

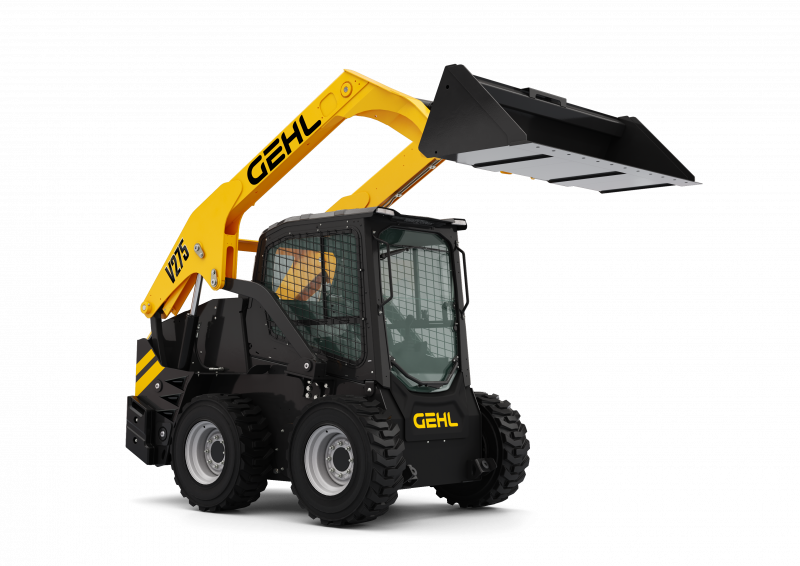

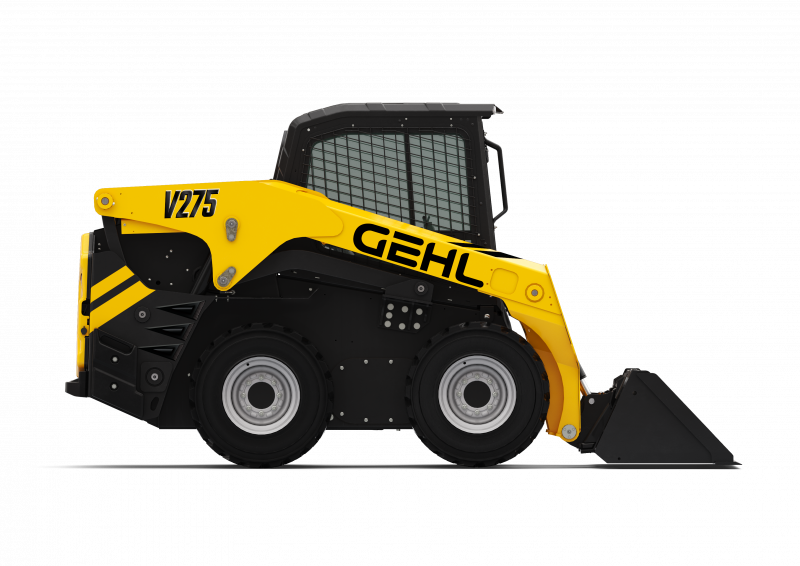

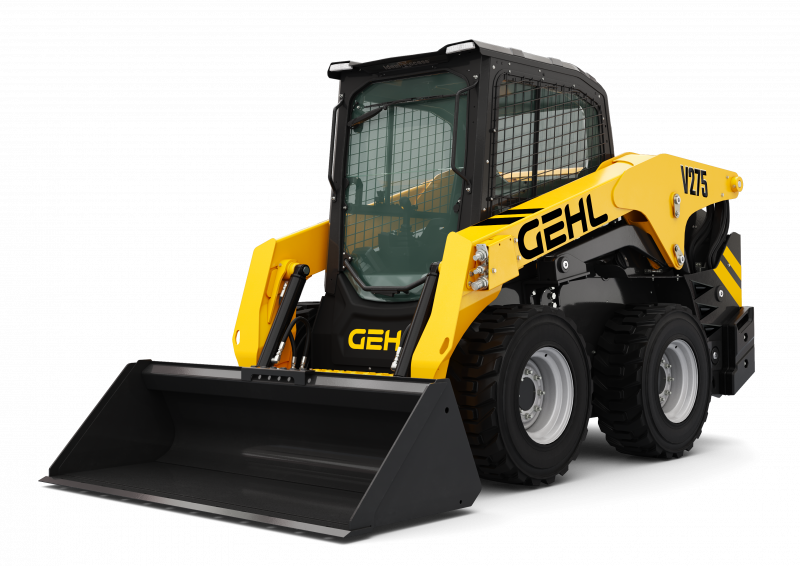

V275 - NEW

Compact Loaders

Working in rough terrain with limited access or narrow space? Then look to the RT105, an ultra-compact Track Loader that's packed to the brim with performance and features. Pilot-operated joystick controls deliver one-to-one proportional control over the drive system, which means you'll enjoy precision movement as you maneuver in and out of tight spaces. Its small size makes it simple to transport from job to job. Plus, it features our lowest ground pressure, which helps when driving on unstable ground and limits turf damage during turns or hauling, making it an ideal tool for landscapers where it's vital to protect property. And even though it's small, it's just as versatile as the rest of our machines and adapts to the task at hand through a variety of attachments. Get in, do work, and finish the job—the RT105 is ready when you are.

See more See less Learn more about the GEHL warranty

Technical features

Capacities

Operating Capacity At 50% Tipping Load

2749 lb

Rated Operating Capacity with Optional Counterweight

2926 lb

Operating Weight

8320 lb

Unladen weight

7553 lb

Tipping capacity

5501 lb

Weight and dimensions

Operating Weight - Approximate

8320 lb

Overall Operating Height - Fully Raised

167 in

Height to Hinge Pin – Fully Raised

129 in

Overall Height to Top of ROPS

81 in

Dump angle at full height

42 °

Dump height

98 in

Overall length with bucket

150 in

Dump reach - Full height

33 in

Rollback Angle at Full Height

92 °

Seat to ground height

39 in

Overall width less bucket

67 in

Ground clearance

9 in

Overall length - Less Bucket

119 in

Clearance Radius - Front with Bucket

90 in

Clearance Circle - Front without Bucket

56 in

Clearance Circle - Rear

72 in

Performances

Travel Speed with Two-Speed Option - Maximum

11 mi/h

Travel speed (unladen)

7 mi/h

Wheels

Transmission type

Hydrostatic

Engine

Engine brand

Yanmar

Engine model

4TNV98CT-XNGL

Engine norm

Stage V

Gross Power (kW)

54 kW

Net Power (kW)

53 kW

Max. torque / Engine rotation

217 ft/lbs / 1800 rpm

Number of cylinders

4

Engine cooling system

Water

Battery

12 V

Alternator - Ampere

100 A

Starter (kW)

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

26 US gpm

Auxiliary Hydraulic Pressure

3475 PSI

High-Flow Auxiliary Hydraulics – Option

33 US gpm

High-Flow Auxiliary Hydraulics Pressure – Option

3325 PSI

Tank capacities

Fuel tank

28 US gal

Reservoir Capacity Hydraulics

6 US gal

Displacement

0.87 US gal

Coolant system capacity

5 US gal
