Compact Loaders

V420

Compact Loaders

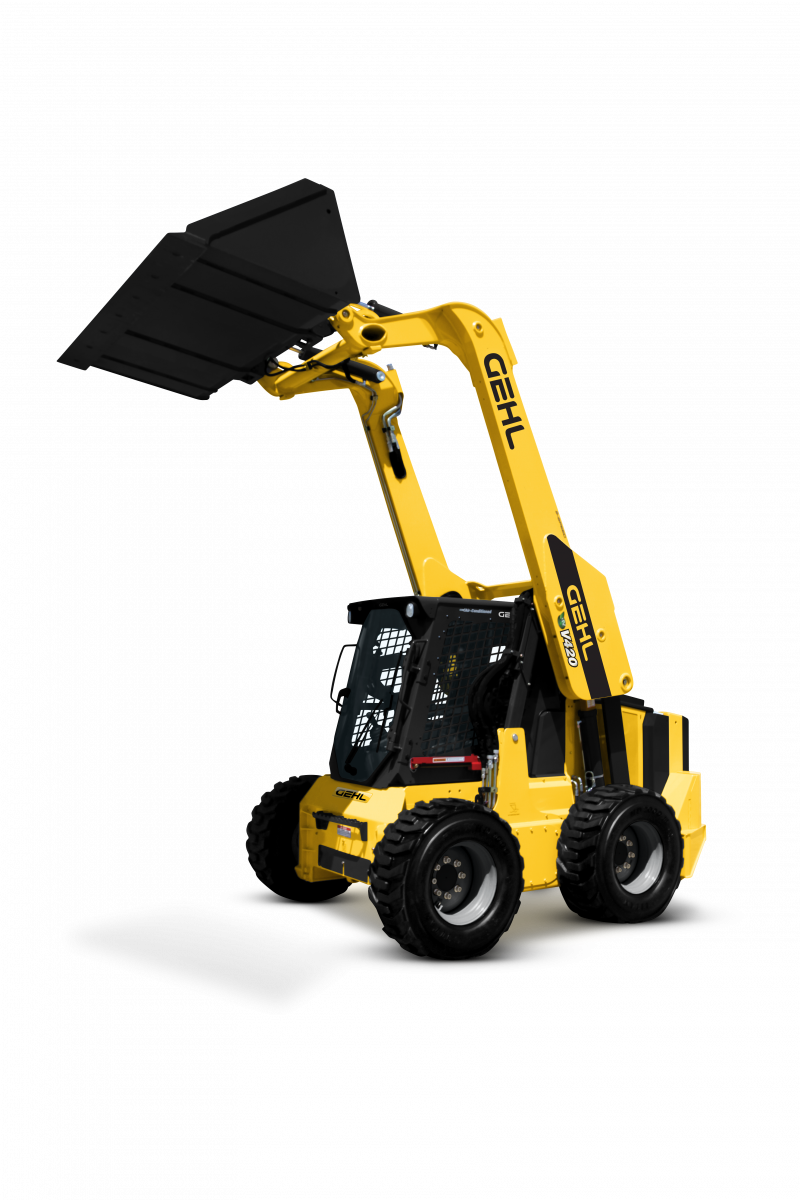

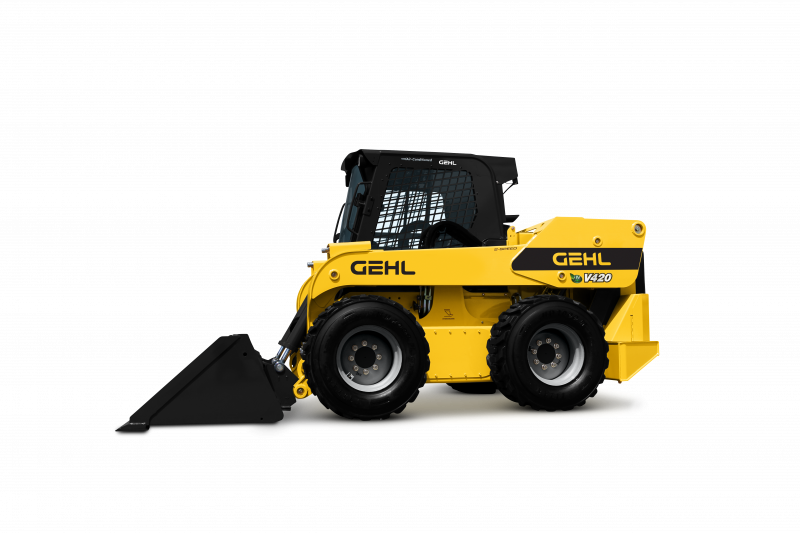

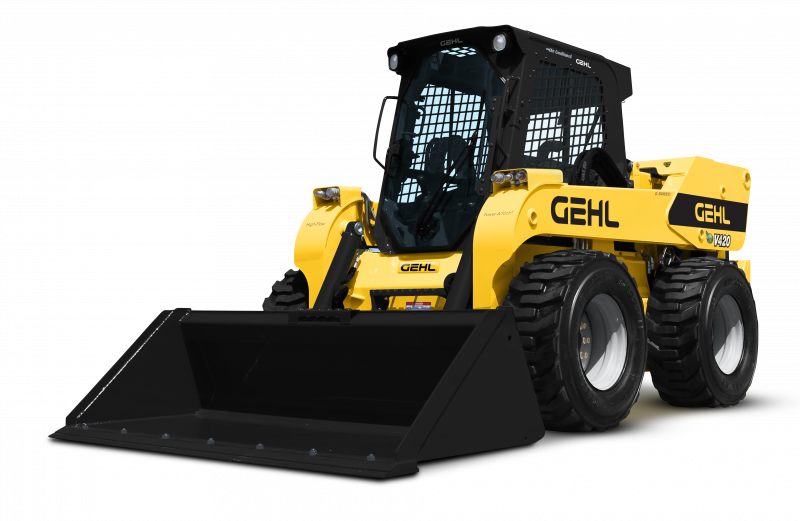

We've come to the monster of them all, the V420. Lift height? Yes. Lift capacity? Oh Yes! True raw power and durability? Like none other and built to impress. 120HP. Yes, you read that right. This loader is in a class of it's own. Anything from flatwork in construction to filling the back of a dump truck, this machine won't let you down. Drive one today at your local dealer and you'll notice the difference when you feel those 120 horses behind you. All while not giving up anything in maneuverability. Specially engineered body type with straight loader arms below the operator's eyesight gives the V420 unmatched visibility. You gotta see drive it to believe it!

See more See less
4200 lbs
186.772 in
37.992 in
159.016 in
Learn more about the GEHL warranty

Gallery

Technical features

General Information

New

No

Compact loader type

Skid Steer Loaders

Product Name

V420

Radial lift or Vertical lift

Vertical Lift

Main Visual

/api/media/b/9/c/4/b9c42785f03cf8a69f89f27f94b2bc6237ef1148_GEHL_420V_AVGFB.png

Description

We've come to the monster of them all, the V420. Lift height? Yes. Lift capacity? Oh Yes! True raw power and durability? Like none other and built to impress. 120HP. Yes, you read that right. This loader is in a class of it's own. Anything from flatwork in construction to filling the back of a dump truck, this machine won't let you down. Drive one today at your local dealer and you'll notice the difference when you feel those 120 horses behind you. All while not giving up anything in maneuverability. Specially engineered body type with straight loader arms below the operator's eyesight gives the V420 unmatched visibility. You gotta see drive it to believe it!

Brand

GEHL

Markets

Agriculture, Construction

Assortiments

Region

R1

Technical characteristics

Wheelbase

4 ft 6.48 in

Capacities

Rated Operating Capacity

4199.80 lbs

Fuel tank

38.04 US gal

Displacement

0.95 US gal

Weight and dimensions

Rear departure angle

18 °

Overall Operating Height - Fully Raised

15 ft 6.77 in

Overall Height to Top of ROPS

6 ft 10 in

Overall length with bucket

13 ft 3.01 in

Dump height

9 ft 7 in

Dump reach at full height

3 ft 1.99 in

Overall width less bucket

6 ft 8.98 in

Overall length - Less Bucket

10 ft 2.99 in

Clearance Circle - Rear

6 ft 2.01 in

Clearance Radius - Front with Bucket

8 ft 1.79 in

Height to Hinge Pin – Fully Raised

11 ft 11.81 in

Bucket Width

7 ft 0.01 in

Clearance Circle - Front with Bucket

8 ft 1.79 in

Clearance Circle - Front without Bucket

4 ft 7.51 in

Dump angle at full height

31 °

Unladen weight

11664.65 lbs

Ground clearance

7.75 in

Standard tyres

14.00x17.5 HD

Performances

Travel Speed with Two-Speed Option - Maximum

11.61 mph

Engine

Engine model

TCD 3.6

Max. torque / Engine rotation

480 Nm at 2200 rpm

Starter (kW)

4 kW

Gross Power (kW)

90 kW

Engine brand / norm

Deutz / Stage IV / Tier 4 Final

Battery

12 V

Hydraulics

Reservoir Capacity Hydraulics

15.79 US gal

High-Flow Auxiliary Hydraulics – Option

155 l/min

Standard flow - Auxiliary hydraulics

114 l/min

Noise and vibration

Environmental noise (LwA)

82.90 dB(A)

Whole-Body Vibration (ISO 2631-1)

1.09 m/s²

Vibration to whole hand/arm

1.15 m/s²

Media and document

Video Range (Youtube video code, not playlist code)

YHYMoONGLv8

Pictures

Applications

/view/assets/GEHL_V420_AG_rocks_1,/view/assets/GEHL_V420_AG_rocks_10,/view/assets/GEHL_V420_AG_rocks_11,/view/assets/GEHL_V420_AG_rocks_12,/view/assets/GEHL_V420_AG_rocks_13,/view/assets/GEHL_V420_AG_rocks_14,/view/assets/GEHL_V420_AG_rocks_15,/view/assets/GEHL_V420_AG_rocks_16,/view/assets/GEHL_V420_AG_rocks_17,/view/assets/GEHL_V420_AG_rocks_18,/view/assets/GEHL_V420_AG_rocks_19,/view/assets/GEHL_V420_AG_rocks_2,/view/assets/GEHL_V420_AG_rocks_20,/view/assets/GEHL_V420_AG_rocks_21,/view/assets/GEHL_V420_AG_rocks_22,/view/assets/GEHL_V420_AG_rocks_23,/view/assets/GEHL_V420_AG_rocks_24,/view/assets/GEHL_V420_AG_rocks_25,/view/assets/GEHL_V420_AG_rocks_26,/view/assets/GEHL_V420_AG_rocks_27,/view/assets/GEHL_V420_AG_rocks_28,/view/assets/GEHL_V420_AG_rocks_3,/view/assets/GEHL_V420_AG_rocks_4,/view/assets/GEHL_V420_AG_rocks_5,/view/assets/GEHL_V420_AG_rocks_6,/view/assets/GEHL_V420_AG_rocks_7,/view/assets/GEHL_V420_AG_rocks_8,/view/assets/GEHL_V420_AG_rocks_9

Performance loader

Rollback at ground

30 °
