Compact Loaders

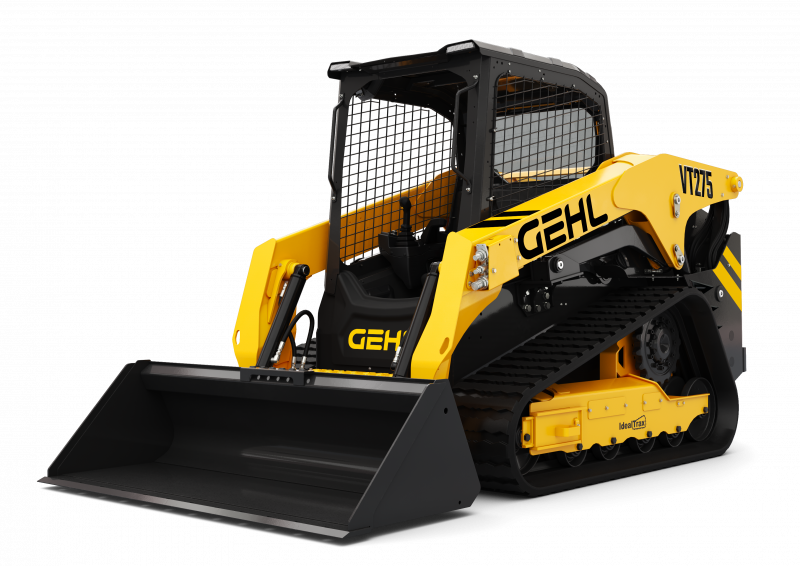

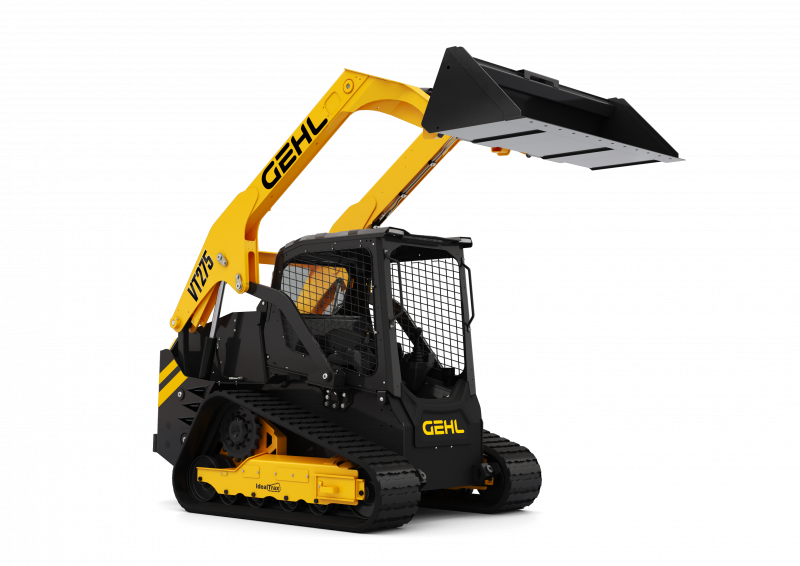

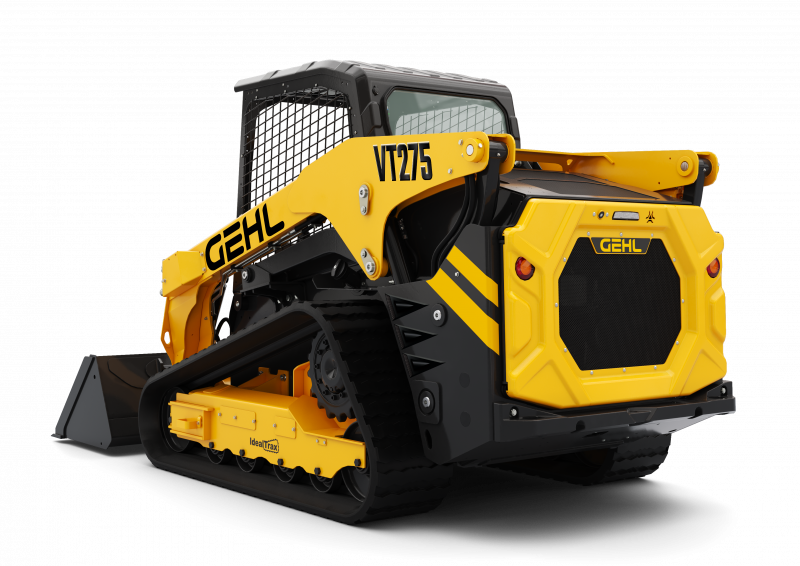

VT275 - NEW

Compact Loaders

Big or small, toughness comes in every size—and there's not much that's tougher than our smallest vertical lift Track Loader. Whether you're a DIYer or handling a commercial job, the VT275 is designed to offer higher dumping heights and handles 2,750 lbs. of operating capacity. Intuitive controls allow for precision movement, and its spacious cab with improved visibility makes hazards easier to spot. Plus, its centralized maintenance point keeps you working longer by reducing service time and labor. From earth moving to feed moving, the VT275 delivers the safety you require, offers the performance you demand, and prepares you for the challenges ahead.

See more See less
2750 lb
168 in
35 in
150 in
Learn more about the GEHL warranty

Technical features

Capacities

Rated Operating Capacity

2750 lb

Operating Capacity At 50% Tipping Load

3929 lb

Rated Operating Capacity with Optional Counterweight

2870 lb

Operating Weight

10051 lb

Unladen weight

9138 lb

Weight and dimensions

Operating Weight - Approximate

10051 lb

Overall Operating Height - Fully Raised

168 in

Height to Hinge Pin – Fully Raised

129 in

Overall Height to top of ROPS

82 in

Dump angle at full height

42 °

Dump height

99 in

Overall length with bucket

150 in

Dump reach - Full height

35 in

Rollback Angle at Full Height

92 °

Seat to ground height

39 in

Overall width less bucket

71 in

Bucket Width

74 in

Ground clearance

9 in

Overall length - Less Bucket

119 in

Clearance Radius - Front with Bucket

93 in

Clearance Circle - Front without Bucket

59 in

Clearance Circle - Rear

69 in

Performances

Travel Speed with Two-Speed Option - Maximum

8 mph

Travel speed (unladen)

6 mph

Engine

Engine brand

Yanmar

Engine model

4TNV98CT-XNGL

Engine norm

Stage V, Tier 4

Gross Power

53.70 kW

Net Power

52.70 kW

Max. torque / Engine rotation

217 ft/lbs / 1800 rpm

Power source

Diesel

Number of cylinders

4

Engine cooling system

Water

Battery voltage

12 V

Alternator - Ampere

100 A

Starter

3 kW

Hydraulics

Standard flow - Auxiliary hydraulics

26 US gpm

Auxiliary Hydraulic Pressure

3475 PSI

High-Flow Auxiliary Hydraulics – Option

33 US gpm

High-Flow Auxiliary Hydraulics Pressure – Option

3325 PSI

Tank capacities

Fuel tank

38 US gal

Reservoir Capacity Hydraulics

6 US gal

Coolant system capacity

5 US gal
